Remove/Install Front Central Operating Unit - AR54.21-P-0500XG
Model 463
as of Model year 2019

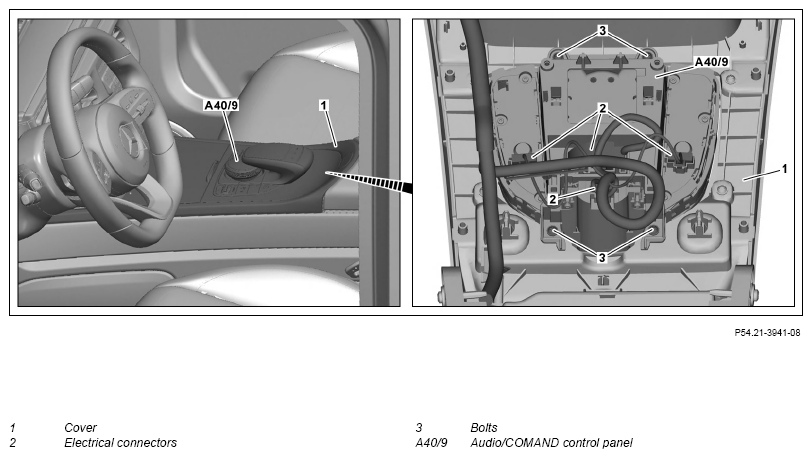

Fig 1: Audio / COMAND Control Unit (Front Central Operating Unit) Components Location - Model 463 As Of Model Year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of Audio/COMAND control panel (A40/9). | When replacing the Audio/COMAND control panel (A40/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove cover (1) at center console. | AR68.20-P-2350XG | |
| 3 | Disconnect electrical connectors (2). | ||
| 4 | Remove screws (3). | ||
| 5 | Remove Audio/COMAND control panel (A40/9) from cover (1). | ||
| 6 | Remove touchpad (A105). | ||
| When replacing the Audio/COMAND control panel (A40/9). | AR54.21-P-0503XG | ||
| 7 | Remove left lower control panel (N72/4) and right lower control panel (N72/5). | ||
| When replacing the Audio/COMAND control panel (A40/9). | AR54.25-P-0005XG | ||
| 8 | Install in reverse order. |
