Remove/Install Differential Lock Switch - AR54.25-P-1080XG

Model 463

as of Model year 2019

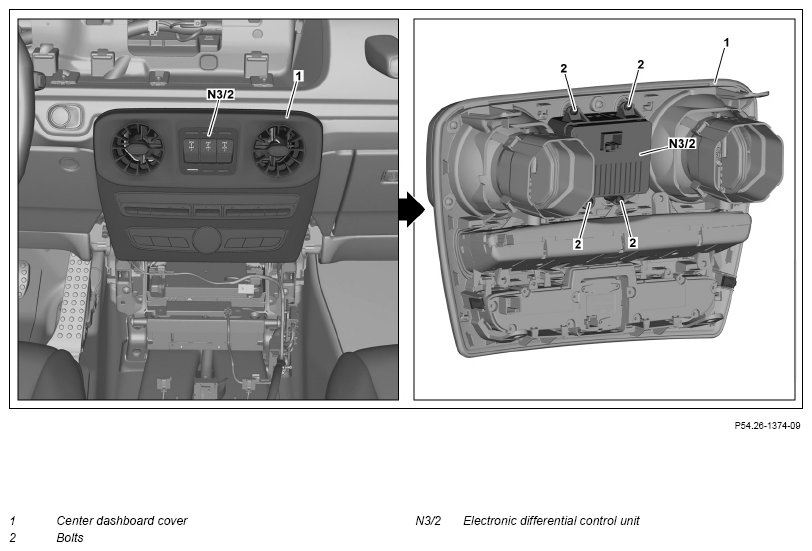

Fig 1: Differential Lock Switch Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform commissioning of electronic differential control unit (N3/2).	When replacing the electronic differential control unit (N3/2).
			AD00.00-P-2000-04B
2	Remove center instrument panel cover (1).		AR68.10-P-3430XG
3	Unscrew bolts (2).
4	Remove electronic differential control unit (N3/2).
5	Install in reverse order.
