Remove/Install Battery - AR54.10-P-0005GW
Model 463
as of Model year 2013 up to Model year 2019
/Facelift 2012

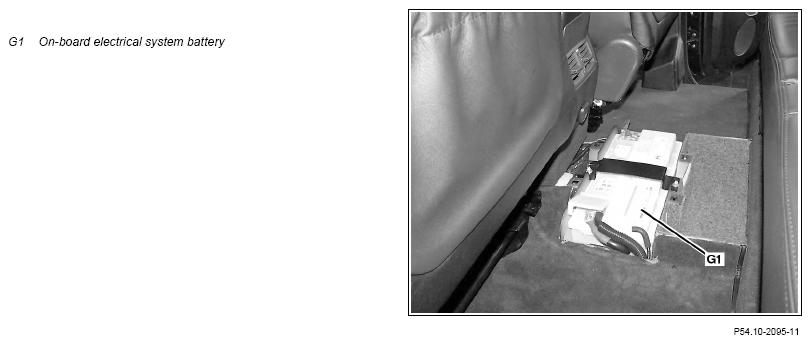

Fig 1: Battery Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012
| Remove/install | |||
| 1 | Detach ground line from on-board electrical system battery (G1) | Model 463 (except 463.234/236/241/242/248) as of Model year 2013 up to Model year 2019 | AR54.10-P-0003GW |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove holder | ||
| 3 | Detach positive line from on-board electrical system battery (G1) | ||
| 4 | Remove on-board electrical system battery (G1) | ||
| 5 | Install in the reverse order | ||
| 6 | Read out and erase the fault memory using Star Diagnosis | ||
| Model 463 as of Model year 2013 up to Model year 2019/Facelift 2012 | AD00.00-P-2000-04A |
