Fuse Assignment Of Pre-Fuse Box In Engine Compartment - GF54.15-P-1256-25GW
Model 463 (except 463.342)
as of Model year 2013 up to Model year 2019
Model 463.342
Except code MJ7 (ECO start/stop function)

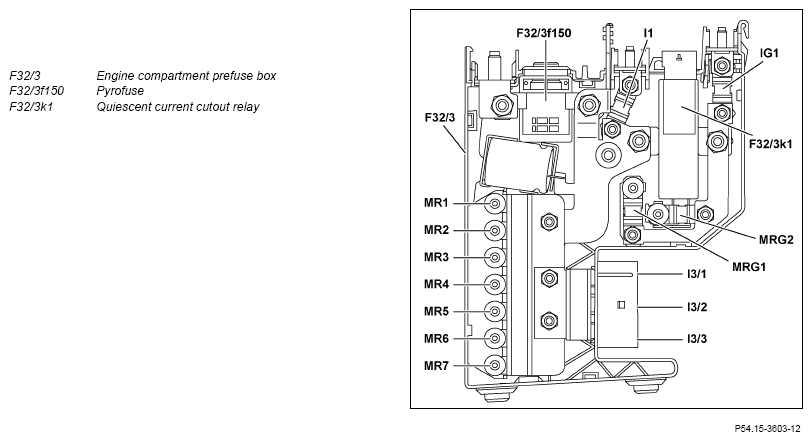

Fig 1: Engine Compartment Pre-Fuse Box - Model 463 (except 463.342) As Of Model Year 2013 Up To Model Year 2019
| Connection | Fuse | Clamping device | Wire identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| MR1 | Electrical fuse 151 (F32/3f151) | 30 | - | Spare | |
| MR2 | Electrical fuse 152 (F32/3f152) | 30 | - | Spare | - |
| MR3 | Electrical fuse 153 (F32/3f153) | 30 | - | Spare | - |
| MR4 | Electrical fuse 154 (F32/3f154) | 30 | 12.0 RD | Fan motor (M4/7) | 100 |
| MR5 | Electrical fuse 155 (F32/3f155) | 30 | 25.0 BK | Battery compartment pre-fuse box (F33) | 150 |
| MR6 | Electrical fuse 156 (F32/3f156) | 30 | - | Spare | - |
| MR7 | Electrical fuse 157 (F32/3f157) | 30 | 16.0 RD | Front passenger footwell fuse and relay module (F58) | 150 |
| I3/1 | Electrical fuse 158 (F32/3f158) | 30 | - | Spare | - |
| I3/2 | Electrical fuse 159 (F32/3f159) | 30 | 4.0 RDGN | Electronic Stability Program control unit (N30/4) | 50 |
| I3/3 | Electrical fuse 160 (F32/3f160) | 30 | - | Spare | - |
| MRG1 | Electrical fuse 161 (F32/3f161) | 30g | - | Spare | - |
| MRG2 | Electrical fuse 162 (F32/3f162) | 30g | - | Spare | - |
| IG1 | Electrical fuse 163 (F32/3f163) | 30g | - | Spare | - |
| I1 | Electrical fuse 164 (F32/3f164) | 30 | 25.0 BK | Rear fuse and relay module (F4) | 150 |
With CODE MJ7 (ECO start/stop function)

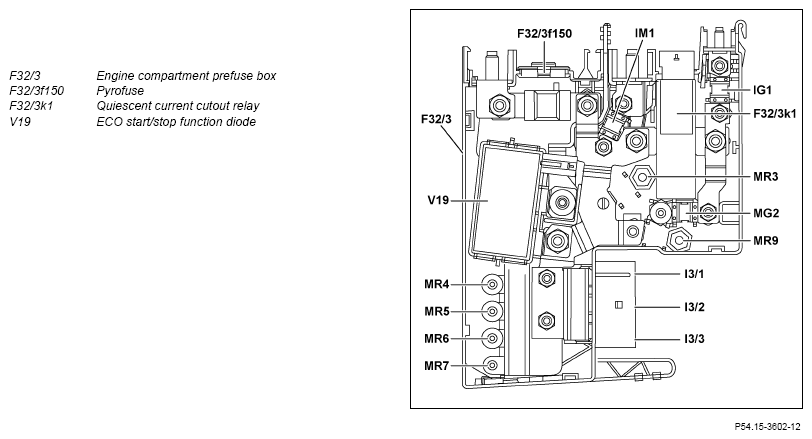

Fig 2: Engine Compartment Pre-Fuse Box - Model 463 (except 463.342) As Of Model Year 2013 Up To 2019 With CODE MJ7 (ECO start/stop function)
| Connection | Fuse | Clamping device | Wire identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| MR4 | Electrical fuse 151 (F32/3f151) | 30 | 12.0 RD | Fan motor (M4/7) | 100 |
| MR5 | Electrical fuse 152 (F32/3f152) | 30 | 25.0 BK | Battery compartment pre-fuse box (F33) | 150 |
| MR6 | Electrical fuse 153 (F32/3f153) | 30 | - | Spare | - |
| MR7 | Electrical fuse 154 (F32/3f154) | 30 | 16.0 RD | Front passenger footwell fuse and relay module (F58) | 150 |
| MR9 | Electrical fuse 155 (F32/3f155) | 30 | 25.0 BK | Rear fuse and relay module (F4) | 150 |
| MG2 | Electrical fuse 156 (F32/3f156) | 30g | - | Spare | - |
| MR3 | Electrical fuse 157 (F32/3f157) | 30 | 10.0 RD | Valid for Model 463.342: Circuit 30 connector sleeve 12V (Z104/4) | 80 |
| IG1 | Electrical fuse 158 (F32/3f158) | 30g | - | Spare | - |
| IM1 | Electrical fuse 159 (F32/3f159) | 30 | 25.0 RD | Alternator (G2) | 200 |
| I3/1 | Electrical fuse 160 (F32/3f160) | 30 | - | Spare | - |
| I3/2 | Electrical fuse 161 (F32/3f161) | 30 | 4.0 RDGN | Electronic Stability Program control unit (N30/4) | 50 |
| I3/3 | Electrical fuse 162 (F32/3f162) | 30 | - | Spare | - |
