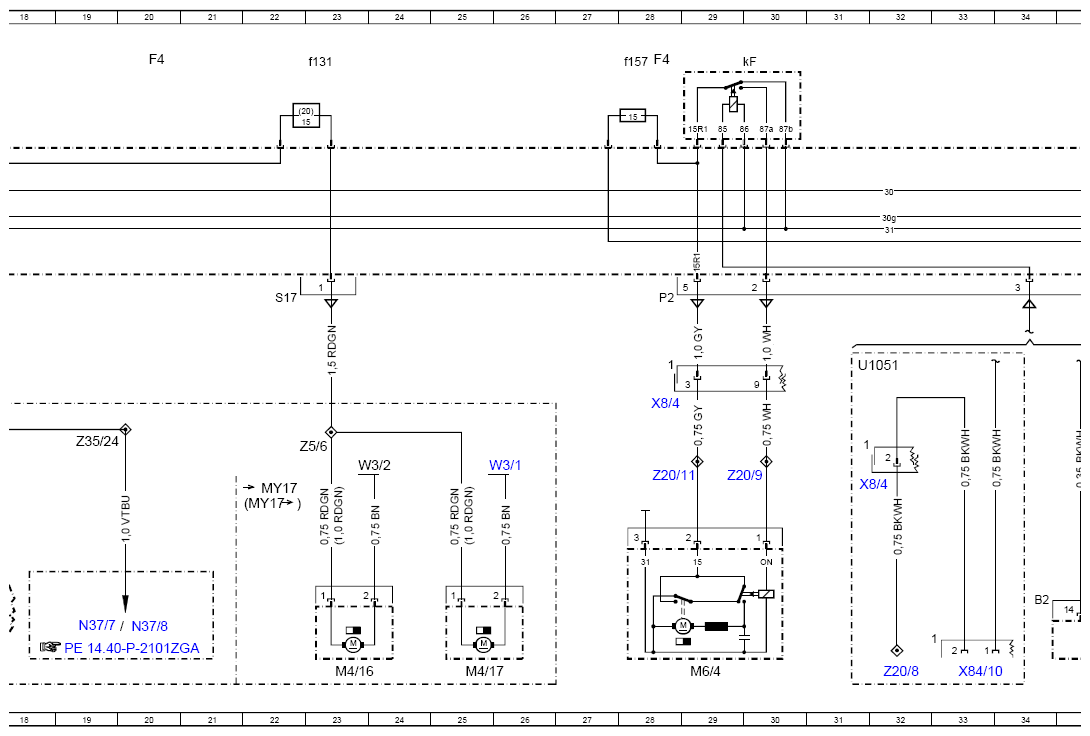

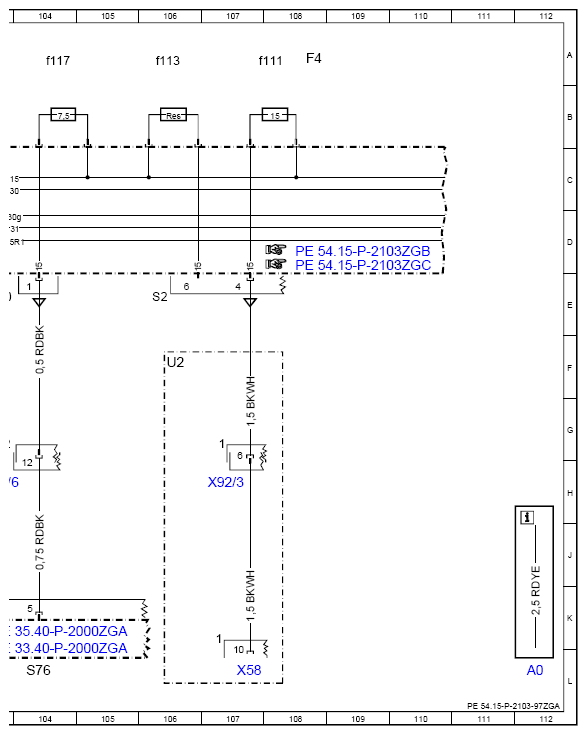

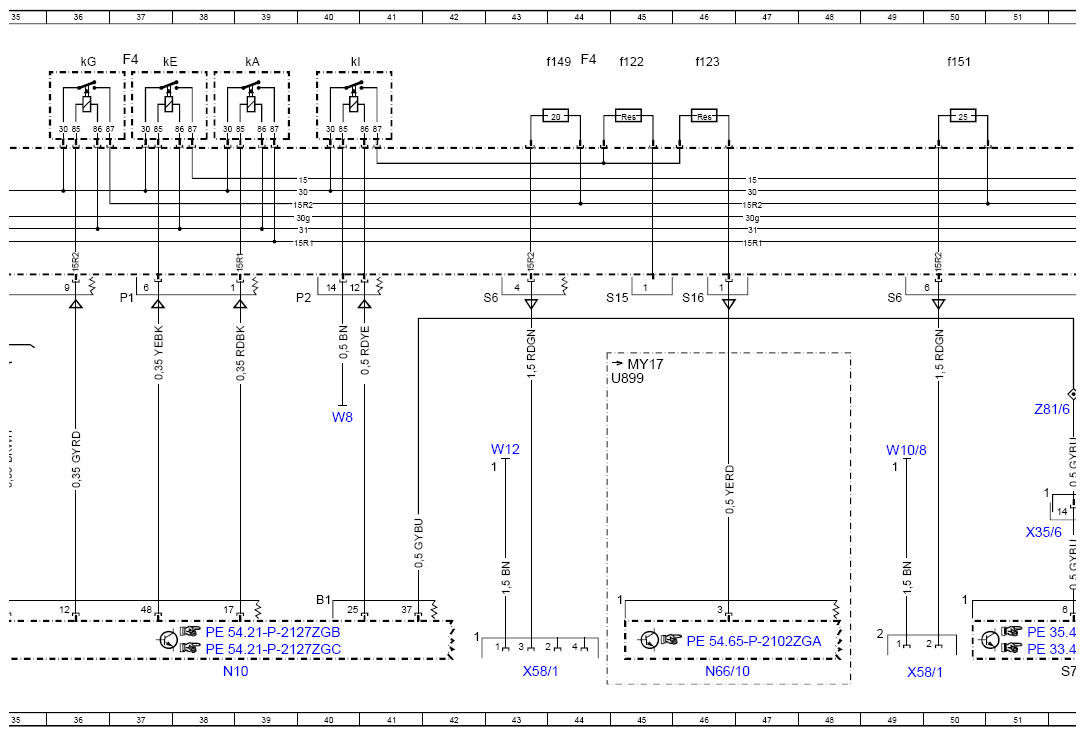

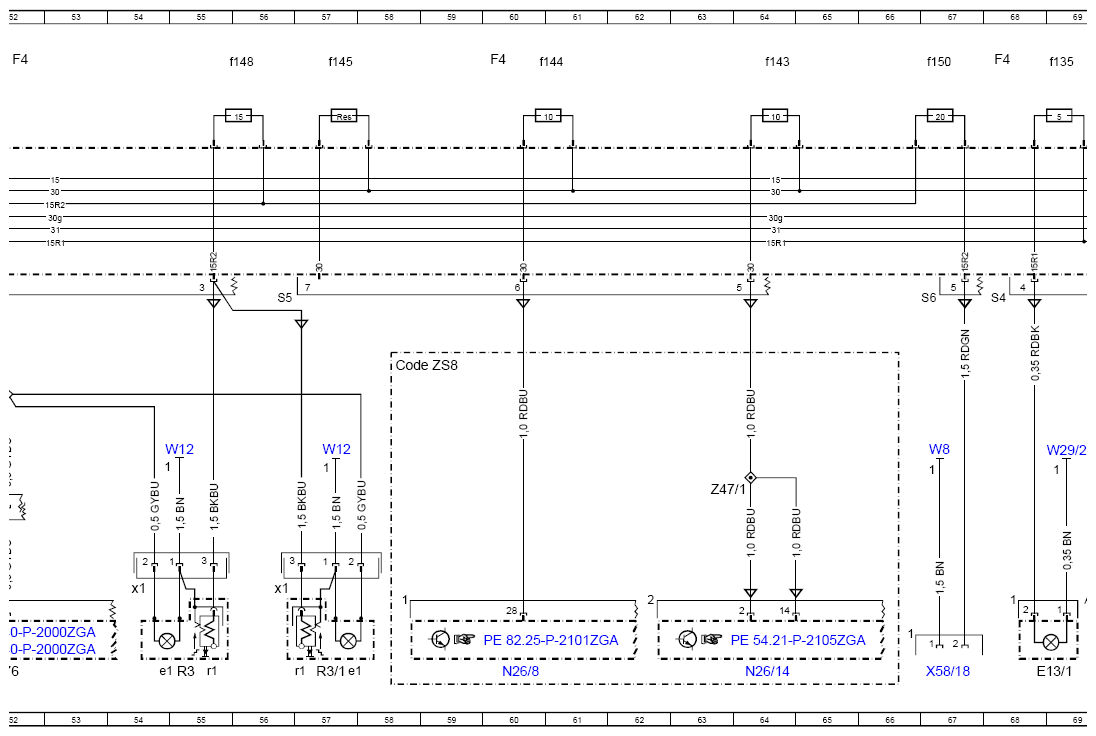

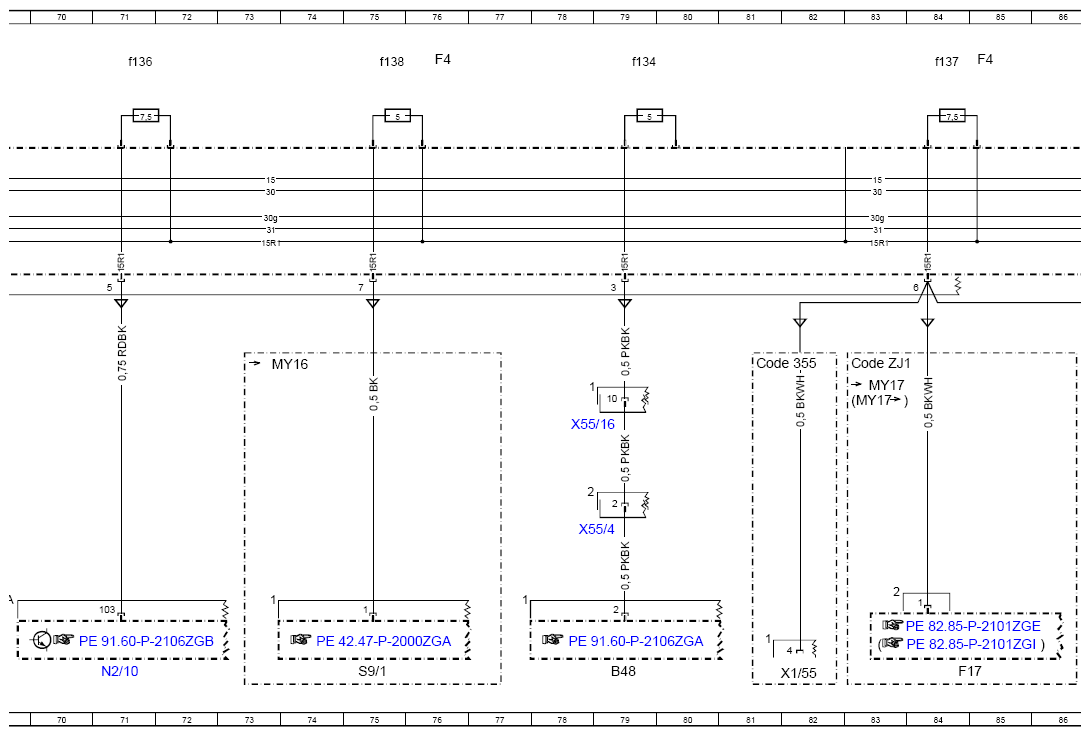

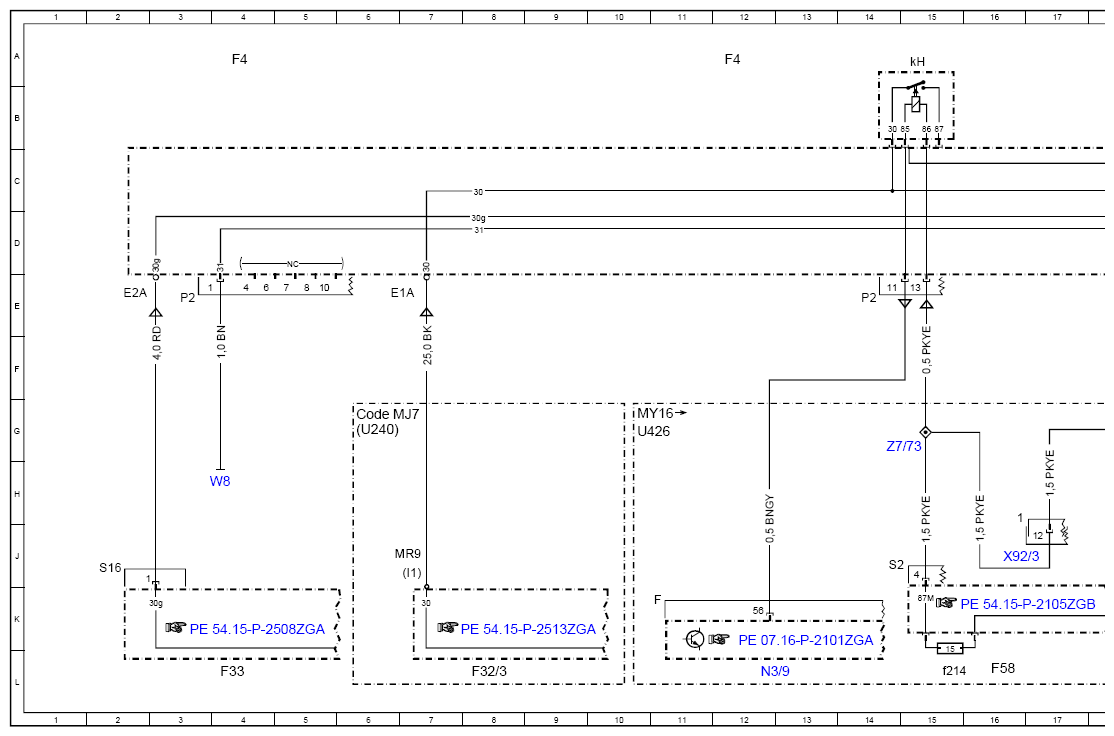

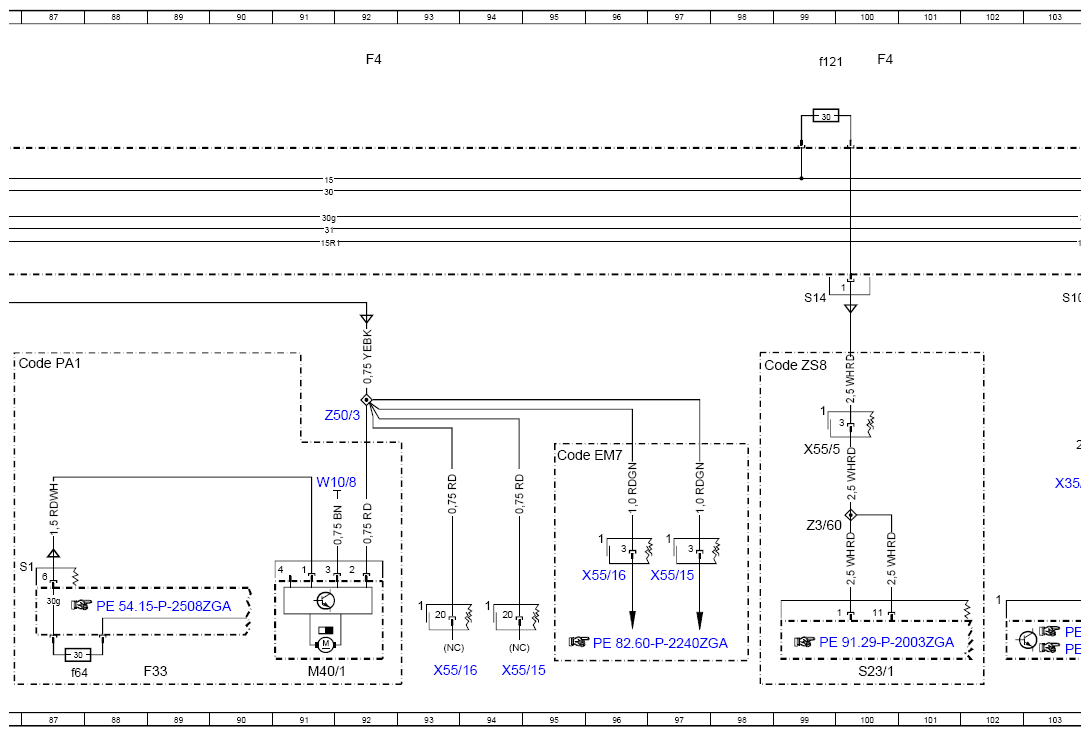

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97ZGA
Model 463 (except 463.342)
as of model year 2019
Module K40/5
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 112L |
| B48 | Front passenger seat occupied recognition and ACSR | 79L |
| Code 355 | Pre-installation for navigation retrofit | 81F |
| Code EM7 | Rear compartment entertainment | 95G |
| Code MJ7 | Stop/start function | 6G |
| Code PA1 | Seating comfort package | 86F |
| Code ZJ1 | Japan version | 83F |
| Code ZS8 | Protection class VR7/glass area VR9 | 98F |
| Code ZS8 | Protection class VR7/glass area VR9 | 58F |
| E13/1 | Glove box lamp | 68L |
| F17 | Electronic Toll Collection pre-installation electrical fuse | 85L |
| F32/3 | Engine compartment prefuse box | 8L |
| F33 | Battery compartment prefuse box | 4L |
| F33 | Battery compartment prefuse box | 89L |
| F33f64 | Fuse 64 | 87L |
| F4 | Rear fuse and relay module | 4A |
| F4 | Rear fuse and relay module | 28A |
| F4 | Rear fuse and relay module | 37A |
| F4 | Rear fuse and relay module | 44A |
| F4 | Rear fuse and relay module | 52A |
| F4 | Rear fuse and relay module | 68A |
| F4 | Rear fuse and relay module | 76A |
| F4 | Rear fuse and relay module | 85A |
| F4 | Rear fuse and relay module | 92A |
| F4 | Rear fuse and relay module | 60A |
| F4 | Rear fuse and relay module | 100A |
| F4 | Rear fuse and relay module | 12A |
| F4 | Rear fuse and relay module | 20A |
| F4 | Rear fuse and relay module | 108A |
| F4f111 | Fuse 111 | 108A |
| F4f113 | Fuse 113 | 106A |
| F4f117 | Fuse 117 | 104A |
| F4f121 | Fuse 121 | 99A |
| F4f122 | Fuse 122 | 45A |
| F4f123 | Fuse 123 | 46A |
| F4f131 | Fuse 131 | 23A |
| F4f134 | Fuse 134 | 79A |
| F4f135 | Fuse 135 | 69A |
| F4f136 | Fuse 136 | 71A |
| F4f137 | Fuse 137 | 84A |
| F4f138 | Fuse 138 | 75A |
| F4f143 | Fuse 143 | 64A |
| F4f144 | Fuse 144 | 61A |
| F4f145 | Fuse 145 | 57A |
| F4f148 | Fuse 148 | 56A |
| F4f149 | Fuse 149 | 44A |
| F4f150 | Fuse 150 | 67A |
| F4f151 | Fuse 151 | 50A |
| F4f157 | Fuse 157 | 28A |
| F4kA | Circuit 15R2 socket relay | 39A |
| F4kE | Circuit 15 relay | 37A |
| F4kF | Rear window wiper relay | 30A |
| F4kG | Circuit 15R1 relay | 36A |
| F4kH | Fan motors relay | 15A |
| F4kl | Backup relay | 40A |
| F58 | Front passenger footwell fuse and relay module | 16L |
| F58f214 | Fuse 214 | 15L |
| M4/16 | Engine oil cooler fan motor | 23L |
| M4/17 | Additional radiator fan motor | 25L |
| M40/1 | Multicontour seat pneumatic pump | 91L |
| M6/4 | Rear-end door wiper motor | 29L |
| N10 | SAM control unit | 38L |
| N2/10 | Supplemental restraint system control unit | 71L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 64L |
| N26/8 | PAS (GAS) control unit | 60L |
| N3/9 | CDI control unit | 12L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 19K |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 20K |
| N66/10 | Backup camera voltage supply module | 46L |
| R3 | Front cigarette lighter with ashtray illumination | 55L |
| R3/1 | Rear cigarette lighter with ashtray illumination | 57L |
| R3/1e1 | Ashtray illumination | 57L |
| R3/1r1 | Rear cigarette lighter heating element | 57L |
| R3/1x1 | Rear cigarette lighter with ashtray illumination electrical connector | 56K |
| R3e1 | Ashtray illumination | 54L |
| R3r1 | Cigarette lighter heating element | 55L |
| R3x1 | Front cigarette lighter with ashtray illumination electrical connector | 54K |
| S23/1 | Right rear seat adjustment switch | 100L |
| S76 | Differential lock button group | 104L |
| S76 | Differential lock button group | 52L |
| S9/1 | Stop lamp switch | 75L |
| U1051 | Valid for rear window wiper | 31F |
| U2 | Valid for all except USA | 106F |
| U240 | Valid for all except ECO start/stop function | 6G |
| U426 | Valid with engine 642. 887 | 10G |
| U899 | Valid for backup camera | 45F |
| W10/8 | Right battery recess ground point | 49G |
| W10/8 | Right battery recess ground point | 91H |
| W12 | Ground point (center console) | 43G |
| W12 | Ground point (center console) | 55G |
| W12 | Ground point (center console) | 57G |
| W29/2 | Right A-pillar ground connection | 69G |
| W3/1 | Ground point (right front wheel well) | 26H |
| W3/2 | Left front wheel arch ground point | 23H |
| W8 | Liftgate ground point | 4H |
| W8 | Liftgate ground point | 67G |
| W8 | Liftgate ground point | 40G |
| X1/55 | External navigation electrical connector | 82L |
| X35/6 | Instrument panel and module box electrical connector | 103H |
| X35/6 | Instrument panel and module box electrical connector | 51J |
| X55/15 | Driver seat electrical connector | 95L |
| X55/15 | Driver seat electrical connector | 97J |
| X55/16 | Front passenger seat electrical connector | 78G |
| X55/16 | Front passenger seat electrical connector | 93L |
| X55/16 | Front passenger seat electrical connector | 96J |
| X55/4 | Front passenger seat connector block | 79J |
| X55/5 | Left rear seat adjustment connector block | 99G |
| X58 | Trai1er socket | 107L |
| X58/1 | Vehicle interior power outlet | 43L |
| X58/1 | Vehicle interior power outlet | 50L |
| X58/18 | Load compartment socket | 67L |
| X8/4 | Tailgate electrical connector | 28G |
| X8/4 | Tailgate electrical connector | 32H |
| X84/10 | Rear window wiper diode electrical connector | 33L |
| X92/3 | Vehicle frame electrical connector (22-pin) | 107H |
| X92/3 | Vehicle frame electrical connector (22-pin) | 16J |
| Z20/11 | Cable end insulation not stripped, placed inside insulated tubing | 28H |
| Z20/8 | Shielding placed inside insulating tubing | 32L |
| Z20/9 | Shielding placed inside insulating tubing | 30H |
| Z3/60 | Driver circuit 15R connector sleeve | 99J |
| Z35/24 | NOx sensor connector sleeve | 19G |
| Z47/1 | Special vehicle multifunction control unit (SVMCU) circuit 30 connector sleeve | 63H |
| Z5/6 | Fan bumper connector sleeve | 23G |
| Z50/3 | Connector sleeve 3 | 92G |
| Z7/73 | Circuit 87 D4 connector sleeve | 15G |
| Z81/6 | Circuit 58d connector sleeve | 52G |
