Remove/Install Parking Assist System Control Unit - AR54.65-P-0018XG

Model 463

as of Model year 2019

with code EZ8 (PARKTRONIC Park Assist)

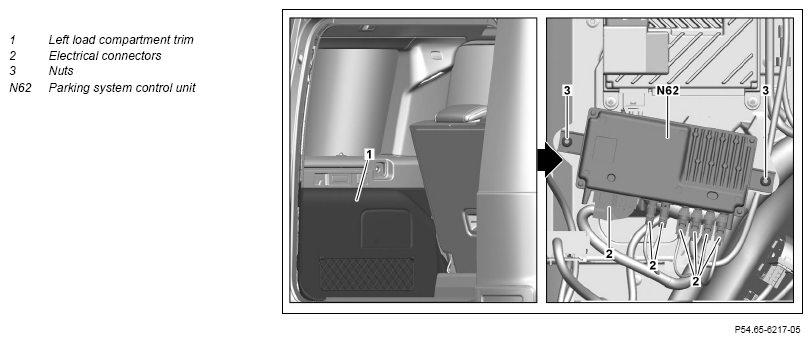

Fig 1: Parking Assist System Control Unit Components Location - Model 463 As Of Model Year 2019 With Code EZ8

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform commissioning of parking system control unit (N62).
			AD00.00-P-2000-04B
2	Switch off ignition and store transmitter key outside of transmitter range (at least 2 m).
3	Remove left load compartment trim (1).		AR68.30-P-1185XG
4	Remove left rear subwoofer (H4/42).		AR82.62-P-7839XG
5	Disconnect electrical connectors (2).	The number of electrical connections (2) may vary depending on vehicle equipment.
6	Unscrew nuts (3).
7	Remove control unit (N62).
8	Install in reverse order.
