Remove/Install Front Passenger Side Fuse And Relay Module - AR54.15-P-0004XG
Model 463
as of Model year 2019

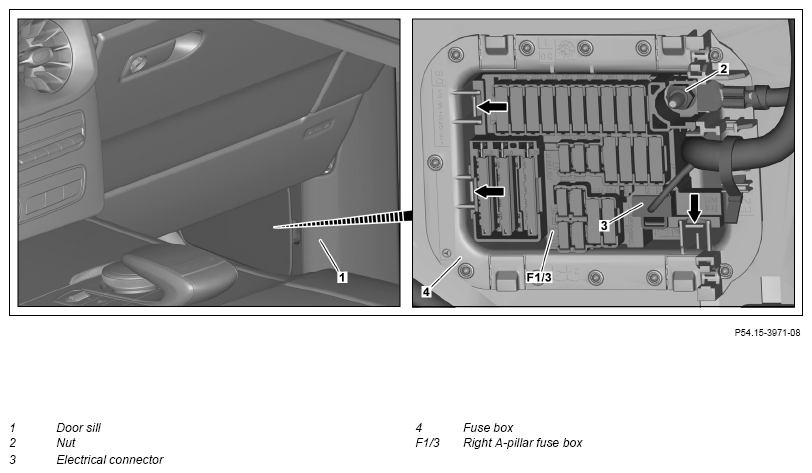

Fig 1: Front Passenger Side Fuse And Relay Module Components Location - Model 463 As Of Model Year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line of battery. | AR54.10-P-0003XG | |
| 2 | Remove door sill (1) on right side of vehicle. | AR68.30-P-4100XG | |
| 3 | Unscrew nut (2) and remove electric line. | *BA54.15-P-1003-02A | |
| 4 | Disconnect the electrical connector (3). | ||
| 5 | Unclip right A-pillar fuse box (F1/3) (arrows) and remove from fuse box (4). | ||

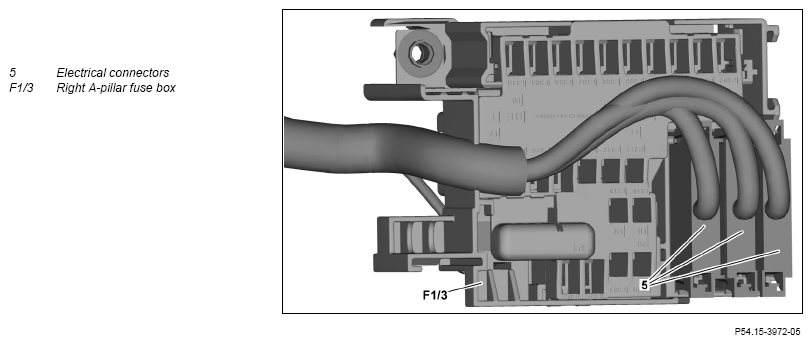

| 6 | Disconnect electrical connectors (5). | ||
| 7 | Unclip all fuse holders and place to one side. | ||
| 8 | Change fuses and relays. | When replacing the right A-pillar fuse box (F1/3). | |
| Model 463 (except 463.342) as of Model year 2019 | GF54.15-P-1256-44GWM | ||
| 9 | Install in reverse order. |
FUSE AND RELAY MODULE
| Number | Designation | Model 463 up to Model year 2019 | Model 463 as of Model year 2019 | ||
|---|---|---|---|---|---|
| BA54.15-P-1003-02A | Nut, positive line to right A-pillar fuse box | M6 | Nm | - | 8 |
