Remove/Install Driver's Side Fuse And Relay Module - AR54.15-P-0003XG

Model 463

as of Model year 2019

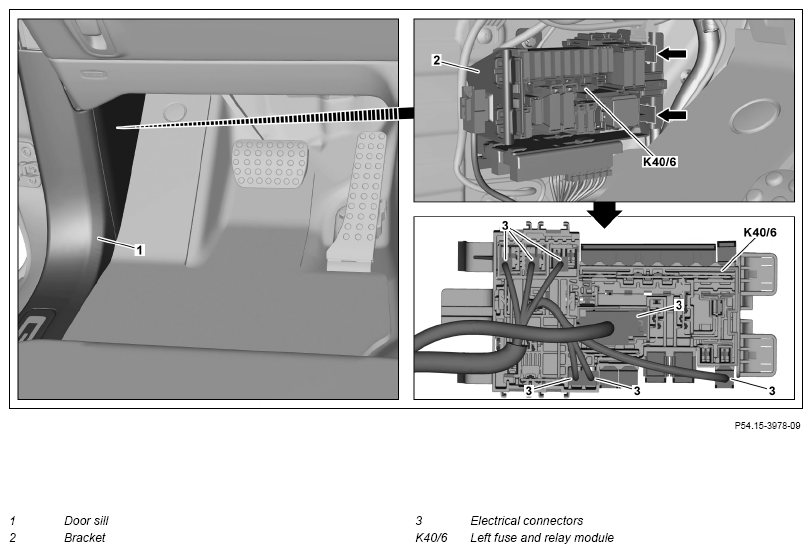

Fig 1: Driver's Side Fuse And Relay Module Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect ground line of battery.		AR54.10-P-0003XG
2	Remove door sill (1) on the driver's side.		AR68.30-P-4100XG
3	Unclip left fuse and relay module (K40/6) from holder (2) (arrows).
4	Fold up left fuse and relay module (K40/6) far enough until the electrical connectors (3) are accessible.
5	Disconnect electrical connectors (3).
6	Remove left fuse and relay module (K40/6) from holder (2).
7	Unclip all fuse holders and place to one side.
8	Change fuses and relays.	When replacing the left fuse and relay module (K40/6).
		Model 463 (except 463.342) as of Model year 2019	GF54.15-P-1256-31GWM
9	Install in reverse order.
