Remove/Install Battery - AR54.10-P-0005XG
Model 463
as of Model year 2019
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30V AC and U >= 60V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||

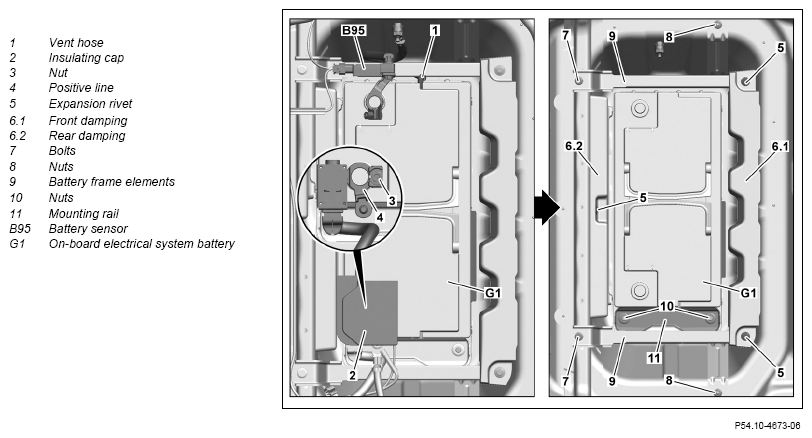

| 1 | Loosen nut and disconnect ground line with battery sensor (B95) from negative pole of on-board electrical system battery (Gi). | AR54.10-P-0003XG | |
| *BA54.10-P-1005-01K | |||
| 2 | Detach vent hose (1) from on-board electrical system battery (G1). | ||
| 3 | Remove insulating cap (2). | ||
| 4 | Unscrew nut (3) and disconnect positive line (4) from positive pole of on-board electrical system battery (G1). | *BA54.10-P-1006-01K | |
| 5 | Unclip expansion rivet (5). | Model 463 as of Model year 2019 with code ZU7 (National version for Canada) with code ZU8 (National version for USA) |
|
| Fig 2 | |||
| 6 | Remove front damping (6.1) and rear damping (6.2). | Model 463 as of Model year 2019 with code ZU7 (National version for Canada) with code ZU8 (National version for USA) |
|
| 7 | Remove screws (7). | Model 463 as of Model year 2019 with code ZU7 (National version for Canada) with code ZU8 (National version for USA) |
|
| *BA54.10-P-1004-01K | |||
| 8 | Unscrew nuts (8). | Model 463 as of Model year 2019 with code ZU7 (National version for Canada) with code ZU8 (National version for USA) |
|
| *BA54.10-P-1004-01K | |||
| 9 | Remove battery frame elements (9). | Model 463 as of Model year 2019 with code ZU7 (National version for Canada) with code ZU8 (National version for USA) |
|
| 10 | Unscrew nuts (10). | *BA54.10-P-1003-01K | |
| 11 | Remove mounting rail (11). | ||
| 12 | Remove on-board electrical system battery (G1). | ||
| 13 | Install in reverse order. | ||
| 14 | Confirm battery change in front SAM control unit under the "Actuations" menu item. | When replacing the on-board electrical system battery (G1). | |
| AD00.00-P-2000-04B |
BATTERY
| Number | Designation | Model 463 as of Model year 2019 | ||
|---|---|---|---|---|
| BA54.10-P-1003-01K | Nut, battery mounting rail to body (battery frame) | M8 | Nm | 24 |
BATTERY
| Number | Designation | Model 463 as of Model year 2019 | ||
|---|---|---|---|---|
| BA54.10-P-1004-01K | Nut/bolt, battery frame to body | M6 | Nm | 8 |
BATTERY
| Number | Designation | Model 463 as of Model year 2019 | |
|---|---|---|---|
| BA54.10-P-1005-01K | Nut, battery sensor to negative battery terminal | Nm | 6 |
BATTERY
| Number | Designation | Model 463 as of Model year 2019 | |
|---|---|---|---|
| BA54.10-P-1006-01K | Nut, electrical fuse to positive battery terminal | Nm | 6 |
