Remove/Install Battery Sensor - AR54.10-P-0002GW

Model 463

as of Model year 2013 up to Model year 2019

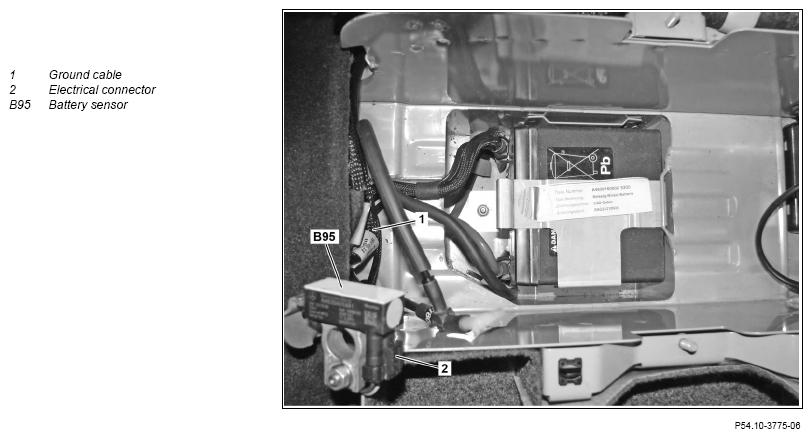

Fig 1: Battery Sensor And Ground Cable Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove battery	Remove/install battery	AR54.10-P-0005GW
2	Disconnect ground line (1) at ground point of on-board electrical system battery from body	Check for correct routing of ground line (1). The battery sensor (B95) is permanently connected to the ground line (1) and it can only be removed together with it.
3	Install in the reverse order
