Remove/Install 12V Socket In Center Console In Rear - AR54.10-P-1008XG

Model 463

as of Model year 2019

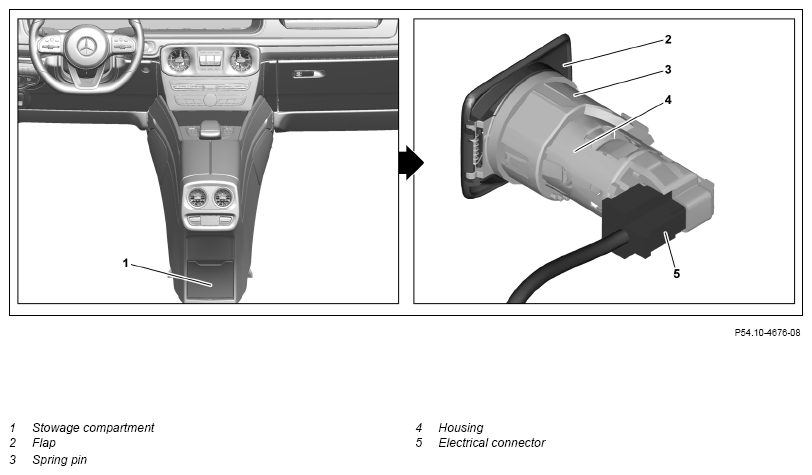

Fig 1: Rear Center Console 12V Socket Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (at least 2 m).
2	Open stowage compartment (1).
3	Fold up flap (2).
4	Release housing (4) with pliers and pull out of clamping sleeve (3) until the electrical connector (5) is accessible.	Pliers	Fig 2
5	Disconnect electrical connector (5).
6	Remove housing (4).
7	Unclip clamping sleeve (3) from stowage compartment (1) by pushing back the two catch hooks and remove.
8	Install in reverse order.

Fig 2: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
