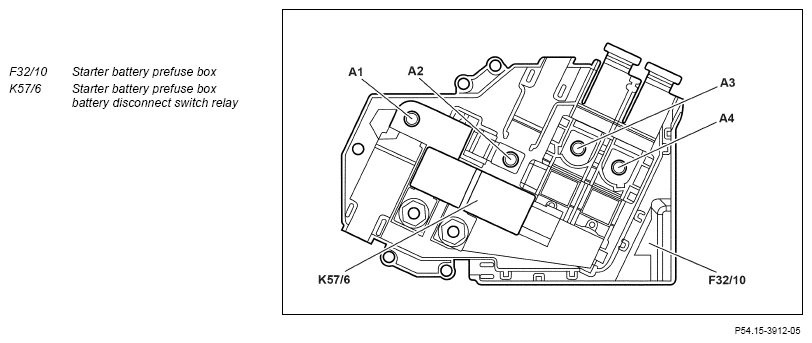

Fuse Assignment Of Starter Battery Pre-Fuse Box - GF54.15-P-1256-50GWM
Model 463 (except 463.342) as of Model year 2019
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|---|
| A1 | - | 30 | 35.0 RD | Connection, circuit 30 from on-board electrical system battery (G1) | - |
| A2 | Electrical fuse 2 (F32/10f2) | 30 | 4.0 RD | Right A-pillar fuse box (F1/3) | 30 |
| A3 | Electrical fuse 3 (F32/10f3) | 30t | 35.0 RD | Vehicle interior pre-fuse box (F32/4) | 300 |
| A4 | Electrical fuse 4 (F32/10f4) | 30t | 10.0 RD | Left fuse and relay module (K40/6) | 80 |
