Component Description For Audio/COMAND Control Panel - GF54.21-P-4501GW
Model 463 (except 463.342) as of Model year 2013 up to Model year 2019

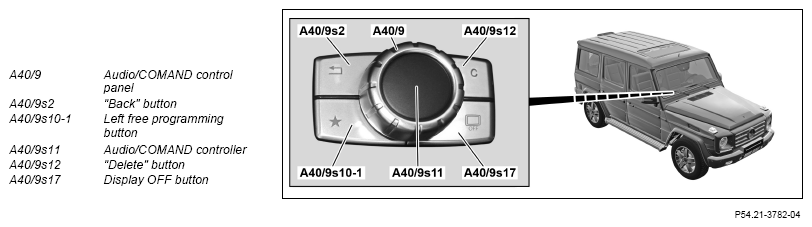

Shown on Model 463.234 as of production date September 1st, 2016

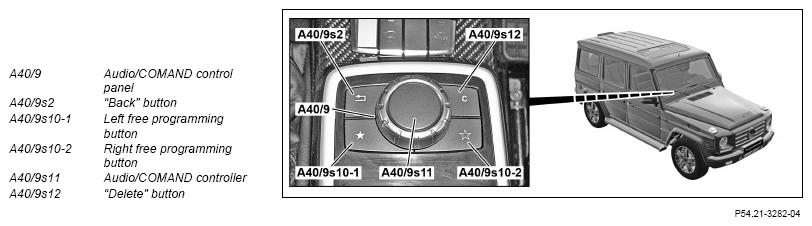

Shown on Model 463.234 up to production date August 31st, 2016
Location
The Audio/COMAND control panel is located on the center console between the front seats.
Tasks
The Audio/COMAND control panel is the central control for the telematics functions. The Audio/COMAND control panel can be used to operate the functions shown on the Audio/COMAND display (A40/8).
The Audio/COMAND control panel receives the following signals:
- Power supply of circuit 30g and circuit 31 via a direct line
- Control data from the COMAND controller unit (A40/3) via the telematics CAN (CAN A)
The Audio/COMAND control panel sends control signals over the telematics CAN to the components of the telematics CAN
Body
The Audio/COMAND control panel includes:
- Audio/COMAND controller for navigation within menu and for selection of menu items, for control of character bar on audio/COMAND display and for navigating on the Internet
- "Back" button, to jump back a level within a menu
- "Delete" button, to delete individual characters or complete entries
- Free programming left button and free programming right button (up to production date August 31st, 2016), to skip to a menu defined by the user
- Display OFF button (as of production date September 1st, 2016), to switch the Audio/COMAND display on and off
Function
The buttons are designed as push/push buttons.
The Audio/COMAND controller can be used to control the following
operations:
- Press: Down vertically
- Turn: To left or right
- Slide: To four quadrants as well as diagonally
Diagram of Audio/COMAND controller control functions
| Wiring diagram, front central operating unit | Model 463 (except 463.342) as of Model year 2017 up to Model year 2019 | PE82.00-P-2060-97ZGB | |
| Model 463 (except 463.342) as of Model year 2013 up to Model year 2017 | PE82.00-P-2060-97ZGA |
