Remove/Install Cover Of Rear Axle Differential - AR35.31-P-0555MNC
Transmission 725.0 in model 213 (except 213.088/089/288/289)
with code 700 (Vehicle production location China)

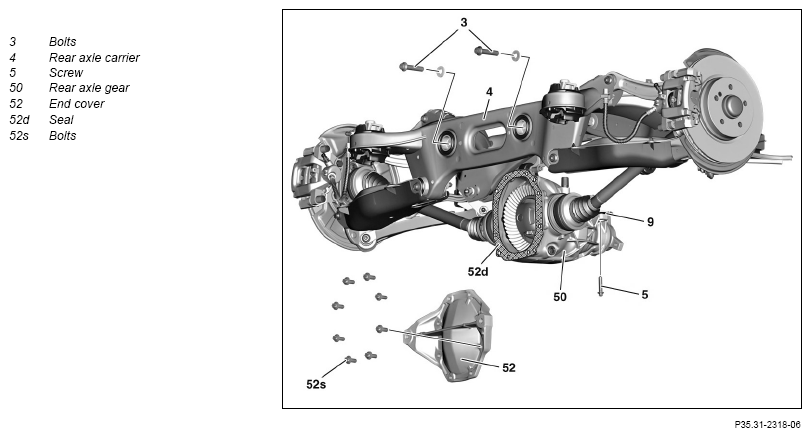

Fig 1: Cover Of Rear Axle Differential Components Location - Transmission 725.0 In Model 213 (Except 213.088/089/288/289) With Code 700
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift. | AR00.60-P-0100CW | |
| 2 | Drain oil from rear axle differential (50). | AR35.31-P-0520-06CWC | |
| *BA35.31-P-1003-02H | |||
| Loctite 272 sealing adhesive | *BR00.45-Z-1102-02A | ||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| 3 | Remove propeller shaft from rear axle differential (50). | AR41.10-P-0050LW | |
| 4 | Secure rear axle differential (50) against falling down using tensioning strap on rear axle carrier (4). | Do not loosen screws (3) of rear axle differential mounting at rear before the rear axle differential (50) is secured! Otherwise the rear axle differential mounting is destroyed. |
|
| 5 | Remove screws (3) of rear axle differential mounting at rear. | *BA35.10-P-1006-01H | |
| 6 | Support rear axle differential (50) with major assembly mount and support plate. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 7 | Release tensioning strap of rear axle differential (50) on rear axle carrier (4). | ||
| 8 | Secure rear axle differential (50) against falling down using tensioning strap support plate. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 9 | Remove screw (5) of front rear axle differential mounting. | *BA35.10-P-1005-01H | |
| 10 | Lower rear axle differential (50). | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 11 | Remove screws (52s) and remove end cover (52). | Do not damage sealing surfaces of rear axle differential (50) and of end cover (52). Otherwise, leaks can occur at the rear axle differential (50). |
*BA35.31-P-1001-02H |
| 12 | Remove seal (52d). | ||
| 13 | Clean sealing surfaces on end cover (52) and on rear axle differential (50). | AR01.00-P-0050-01A | |
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| 14 | Install in the reverse order. | ||
| Check | |||
| 15 | Check oil level in rear axle differential (50) and correct if necessary. | AR35.31-P-0520-08OLC | |
| *BA35.31-P-1002-02H | |||
| *BF35.31-P-1002-02C | |||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| Sealant, Omnifit 100H (50 g) | *BR00.45-Z-1061-01A | ||
| 16 | Check rear axle differential (50) for leak tightness. |
REAR AXLE CARRIER
| Number | Designation | Model 213 | |||
|---|---|---|---|---|---|
| BA35.10-P-1005-01H | Rear axle differential to front adapter | Rear axle differential (steel) | Nm | 65 | |
| Rear axle differential (aluminum) | Stage 1 | Nm | 40 | ||
| Stage 2 | ∠° | 45 | |||
REAR AXLE CARRIER
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA35.10-P-1006-01H | Bolt, rear axle differential to rear transverse bridge | Nm | 170 |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 213 | ||
|---|---|---|---|---|
| BA35.31-P-1001-02H | Bolt, end cover to rear axle differential | Stage 1 | Nm | 30 |
| Stage 2 | ∠° | 45 | ||
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA35.31-P-1002-02H | Oil filler screw of rear axle differential | Nm | 50 |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA35.31-P-1003-02H | Drain screw to rear axle differential | Nm | 50 |
REAR AXLE GEAR
| Number | Designation | Model 213 (except 213.088/089/288/289) with code 700 (Vehicle production location China) | ||
|---|---|---|---|---|
| BF35.31-P-1002-02C | Filling capacity | Rear axle differential 200 C | Liter | 1, 0 |
| Overview of specified transmission oils | BB00.40-P-0231-01A | |||
| References, approved axle gear oils | BB00.40-P-0235A | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1038-04A | Loctite 7200 | Henkel AG & Co. KGaA |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
| BR00.45-Z-1102-02A | Loctite 272 sealing adhesive | Henkel AG & Co. KGaA |
