Rear Axle - oil change - AP35.00-P-3501CMH

Model 213

with code 467 (Electronic locking differential)

with code 807 (Model year 2017)

except code 471 (Manual locking differential)

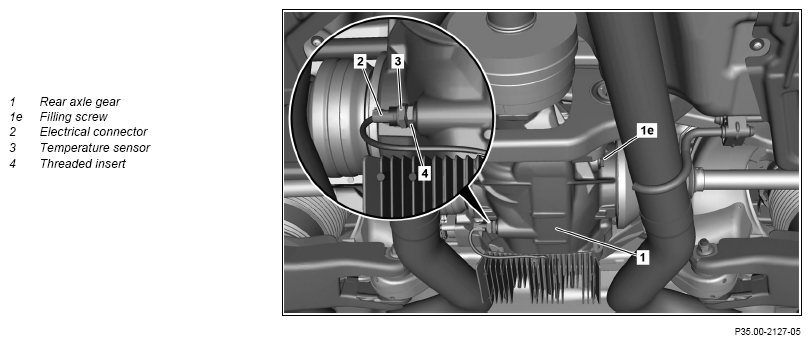

Shown on model 213 with code 807 (model year 2017) with code 467 (Electronic locking differential)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Preparatory activity
1	Lift vehicle with lifting platform.
		Vehicle must be horizontal. Otherwise, the rear-axle differential (1) will not be filled correctly and an incorrect oil filling capacity can lead to leakage and damage.	AR00.60-P-1002LWG
	Clean
2	Clean area surrounding threaded insert (4) and filling screw (1e).
	Remove
3	Remove filling screw (1e).
4	Release and disconnect electrical connector (2).
	Drain off
5	Remove temperature sensor (3) and drain oil from rear axle differential (1).
6	Remove threaded insert (4) and drain remaining oil from rear axle differential (1).
	Clean
7	Clean threaded insert (4) and drain bore in the rear axle differential (1).	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Check
8	Check threaded insert (4) for re-usability.	If the threaded insert (4) is not damaged, ↓ proceed with operation step 9. If the threaded insert (4) is damaged, ↓ replace threaded insert (4) and continue with operation step 9.
	Install
9	Tighten threaded insert (4).	Threaded insert, oil line/temperature sensor to rear axle differential	*BA35.31-P-1005-02H
10	Tighten temperature sensor (3) with new seal.	Replace seal of temperature sensor (3). Otherwise, this may lead to leakage and consequential damage. Temperature sensor to threaded insert/rear axle differential	*BA35.31-P-1008-02H
11	Connect and lock electrical connector (2).
	Pour in
12	Add oil to rear axle differential (1) up to lower edge of filling hole.	Only approved oils as per "SAE 75W-140 Limited Slip" may be used. Damage can otherwise occur. Filling capacity for rear axle differential with differential lock	*BF35.31-P-1003-02C
	Clean
13	Clean filling hole in rear axle differential (1).	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Check
14	Check filling screw (1e) for re-usability.	If the filling screw (1e) is not damaged, ↓ continue with operation step 15. If the filling screw (1e) is damaged, ↓ replace filling screw (1e) and continue with operation step 15.
	Install
15	Tighten filling screw (1e).	Oil filler screw of rear axle differential	*BA35.31-P-1002-02H
	Finishing activity
16	Lower vehicle with vehicle lift.
			AR00.60-P-1002LWG
