Remove/Install Rubber Mounts From Thrust Arm - AR35.20-P-0105-01LW

Model 205 (except 205.386/387/486/487)

Model 213 (except 213.088/089/288/289)

Model 253 (except 253.388/389/988/989)

Model 293

Fig 1: Identifying Extraction And Insertion Tool (204 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Remove

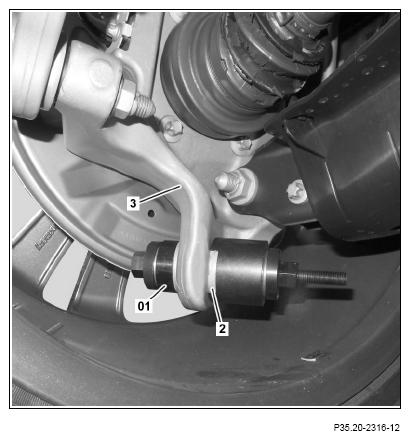

1. Pull elastomer bearing (2) out of wheel carrier (3) using extraction and insertion tool (01).
2. Remove extraction and insertion tool (01) with elastomer bearing (2).

   Courtesy of MERCEDES-BENZ USA

   Install

   Courtesy of MERCEDES-BENZ USA

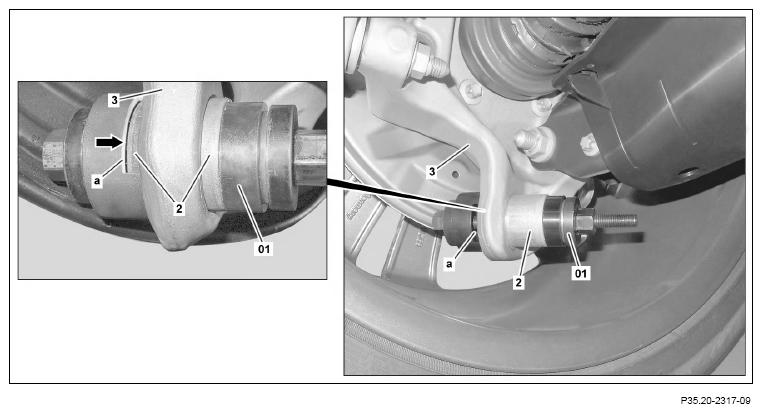

3. Position extraction and insertion tool (01) with elastomer bearing (2) on wheel carrier (3).
4. Pull elastomer bearing (2) into wheel carrier (3) using extraction and insertion tool (01).

   Pull in until the elastomer bearing (2) fully covers the cutout (a) in the extraction and insertion tool (01) (arrow).

5. Remove extraction and insertion tool (01).
