Remove/Install Rear Wheel Carrier - AR35.20-P-0115MNE

Model 213.088/089/288/289

MODIFICATION NOTES

11.09.2017

Screw, rear axle brake cover plate to wheel carrier

Model 213 with Engine 177

BA42.10-P-1004-06J

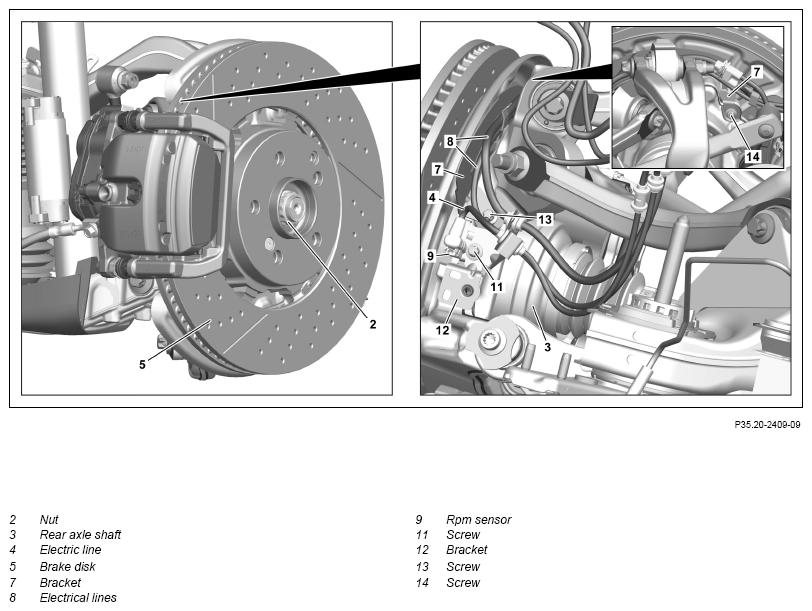

Shown on right wheel carrier (1)

Fig 1: Rear Wheel Carrier Components Location - Model 213.088/089/288/289 (Shown On Right Side)

Courtesy of MERCEDES-BENZ USA

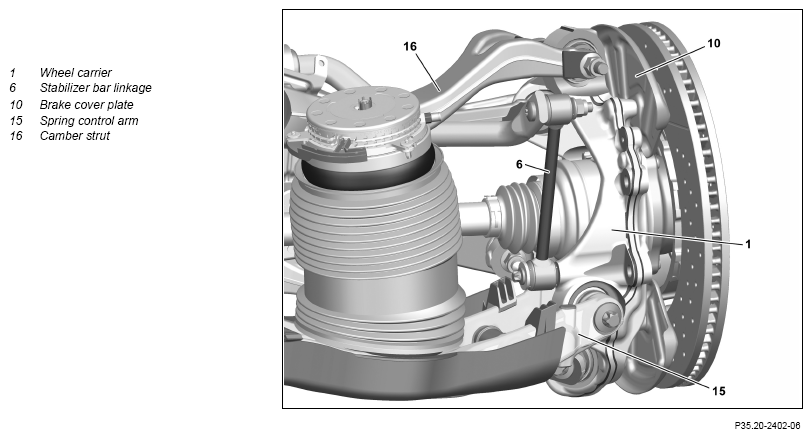

Shown on right wheel carrier

Courtesy of MERCEDES-BENZ USA

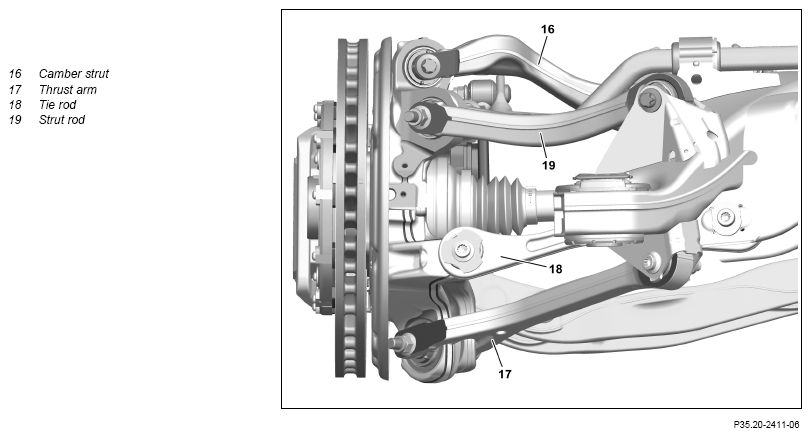

Shown on right wheel carrier

Courtesy of MERCEDES-BENZ USA

	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove rear wheel		AR40.10-P-1102A
3	Unscrew nut (2) from rear axle shaft (3)		AR35.30-P-0621MNE
4	Remove brake disk (5)		AR42.10-P-0220EWE
5	Remove air spring	Model 213.088/089/288/289 with code 489 (AIRMATIC)	AR32.22-P-1500MNE
6	Remove shock absorber		AR32.25-P-0110LW
7	Remove torsion bar linkage (6) from wheel carrier (1)	Bolt, torsion bar linkage to wheel carrier	*BA32.20-P-1004-04S
8	Unhook electric lines (8) from holder (7)
9	Remove screw (11)	Bolt, RPM sensor to wheel carrier	*BA42.30-P-1001-02K
10	Remove RPM sensor (9) with holder (12) and place to one side with electric lines (4, 8) attached
11	Detach thrust arm (17) from wheel carrier (1)	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted. Bolt, thrust arm to wheel carrier	*BA35.20-P-1002-05J
		Screwdriver bit	Fig 3
12	Remove spring link (15) from wheel carrier (1)	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted.
		Bolt, spring control arm to wheel carrier	*BA35.20-P-1002-01I
		Screwdriver bit	Fig 3
13	Detach tie rod (18) from wheel carrier (1)	Bolt, tie rod to wheel carrier	*BA35.20-P-1001-04M
		Screwdriver bit	Fig 3
14	Detach strut rod (19) from wheel carrier (1)	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted.
		Bolt, strut rod to wheel carrier	*BA35.20-P-1002-03L
		Screwdriver bit	Fig 3
15	Detach camber strut (16) from wheel carrier (1)	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted.
		Bolt, camber strut to wheel carrier	*BA35.20-P-1002-02L
		Screwdriver bit	Fig 3
16	Remove wheel carrier (1) from rear axle shaft (3)	If the rear axle shaft (3) in the wheel carrier (1) is firmly seated. ↓ Detach rear axle shaft (3) from wheel carrier (1).	AR35.30-P-0115-03OLC
		Extraction and insertion tool	Fig 2
		Bracket	Fig 4
17	Press new rear axle shaft flange into angular contact ball bearing up to end stop	When replacing the wheel carrier (1). The new wheel carrier (1) is supplied with angular-contact ball bearings only. The angular contact ball bearing does not need to be removed from the new wheel carrier (1).	AR35.20-P-0130OLC
18	Detach brake cover plate (10) from wheel carrier (1)	When replacing the wheel carrier (1).
		Screw/bolt, rear axle brake cover plate to hub/rotor assembly	*BA42.10-P-1004-06J
19	Unscrew screws (13, 14) and remove bracket (7)	When replacing the wheel carrier (1).
20	Install in the reverse order
21	Perform wheel alignment check		AR40.20-P-0200LW

REAR AXLE TORSION BAR

Number	Designation		Model 213.088/089/288/28 9
BA32.20-P-1004-04S	Bolt, torsion bar linkage to wheel carrier	Nm	50

TIE ROD

Number	Designation			Model 213
BA35.20-P-1001-04M	Bolt, tie rod to wheel carrier	Stage 1	Nm	50
BA35.20-P-1001-04M	Bolt, tie rod to wheel carrier	Stage 2	∠°	90

SPRING CONTROL ARM

Number	Designation			Model 213
BA35.20-P-1002-01I	Bolt, spring control arm to wheel carrier	Stage 1	Nm	80
BA35.20-P-1002-01I	Bolt, spring control arm to wheel carrier	Stage 2	∠°	90

CAMBER STRUT

Number	Designation			Model 213
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 1	Nm	50
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 2	∠°	90

STRUT ROD

Number	Designation			Model 213
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier M12	Stage 1	Nm	50
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier M12	Stage 2		90

THRUST ARM

Number	Designation			Model 213
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 1	Nm	50
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 2	∠°	90

BRAKE DISKS, BRAKE COVER PLATE

Number	Designation			Model 213 with engine 177
BA42.10-P-1004-06J	Screw/bolt, rear axle brake cover plate to hub/rotor assembly	M6	Nm	8

REAR AXLE RPM SENSOR

Number	Designation		Model 213
BA42.30-P-1001-02K	Bolt, RPM sensor to wheel carrier	Nm	8

Fig 2: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Bracket (210 589 01 40 00)

Courtesy of MERCEDES-BENZ USA
