Remove/Install Rear Elastomer Bearing For Rear Axle Differential Mounting - AR35.10-P-0052MNE

Model 213.088/089/288/289

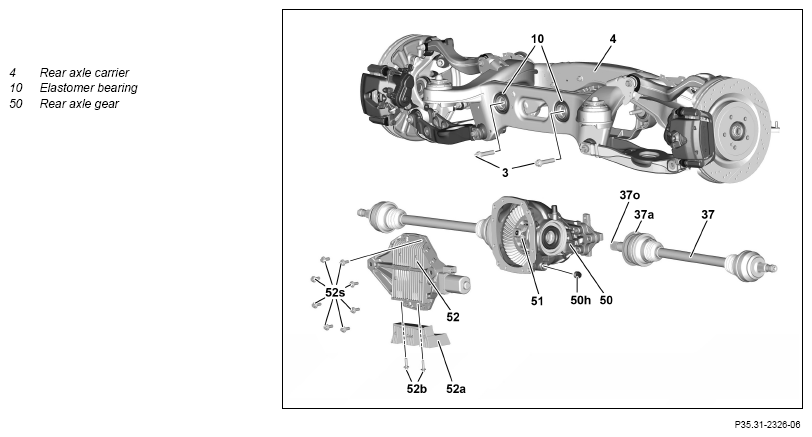

Fig 1: Rear Axle Differential Mounting Elastomer Bearing Components Location - Model 213.088/089/288/289

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove rear axle differential (50) from rear axle carrier (4)		AR35.31-P-0522MNE
2	Press elastomer bearings (10) from rear axle carrier (4)		AR35.10-P-0050-02LW
		Hollow piston cylinder	Fig 6
		Extraction and installation tool	Fig 5
		Hand pump	Fig 4
		Hydraulic hose (complete)	Fig 3
		Extraction and insertion tool	Fig 2
3	Install in the reverse order
