Remove/Install Elastomer Bearing Of Strut Rod On Rear Wheel Carrier - AR35.20-P-3402MNE

Model 213.088/089/288/289

F

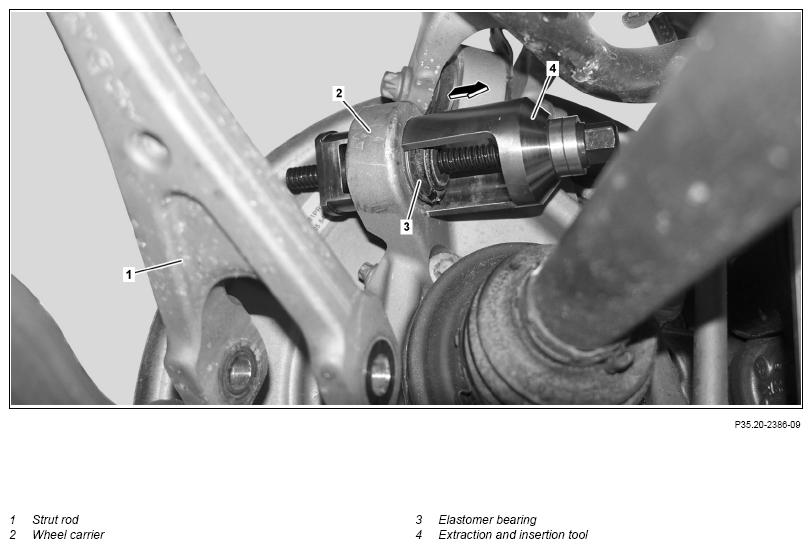

Fig 1: Rear Wheel Carrier Strut Rod Elastomer Bearing Components Location - Model 213.088/089/288/289

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove rear axle RPM sensor and place to one side with line connected		AR42.40-P-0820LW
2	Remove strut rod (1) from wheel carrier (2) and fold downwards	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted.
		Screwdriver bit	Fig 3
3	Grease spindle of extraction and insertion tool (4) with rolling-element bearing grease
	High temperature anti-friction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Extraction and insertion tool	Fig 2
4	Position extraction and insertion tool (4) on wheel carrier (2) and elastomer bearing (3)	Make sure that the extraction and insertion tool (4) is seated correctly.
		Extraction and insertion tool	Fig 2
5	Pull elastomer bearing (3) out of wheel carrier (2) in direction of arrow and remove
	Install
6	Grease spindle of extraction and insertion tool (4) again with rolling-element bearing grease
	High temperature anti-friction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Extraction and insertion tool	Fig 2
7	Position extraction and insertion tool (4) with new elastomer bearing (3), as shown, onto wheel carrier (2)	Make sure that the extraction and insertion tool (4) is seated correctly.
		Extraction and insertion tool	Fig 2
8	Draw elastomer bearing (3) in direction of arrow into wheel carrier (2)	Draw elastomer bearing (3) in far enough to level out the protrusion on the wheel carrier (2) on both sides. The elastomer bearing (3) must be located in the middle in the wheel carrier (2).
9	Detach extraction and insertion tool (4)	Extraction and insertion tool	Fig 2
10	Mount strut rod (1) onto wheel carrier (2)	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted.
		Bolt, strut rod to wheel carrier	*BA35.20-P-1002-03L
		Screwdriver bit	Fig 3
11	Install rear axle RPM sensor		AR42.40-P-0820LW
12	Perform wheel alignment check		AR40.20-P-0200LW

STRUT ROD

Number	Designation				Model 213
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 1	Nm	50
			Stage 2	∠°	90

Fig 2: Identifying Extraction And Insertion Tool (205 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
