Remove/Install Elastomer Bearing Of Spring Control Arm On Rear Wheel Carrier - AR35.20-P-3401MNE
Model 213.088/089/288/289

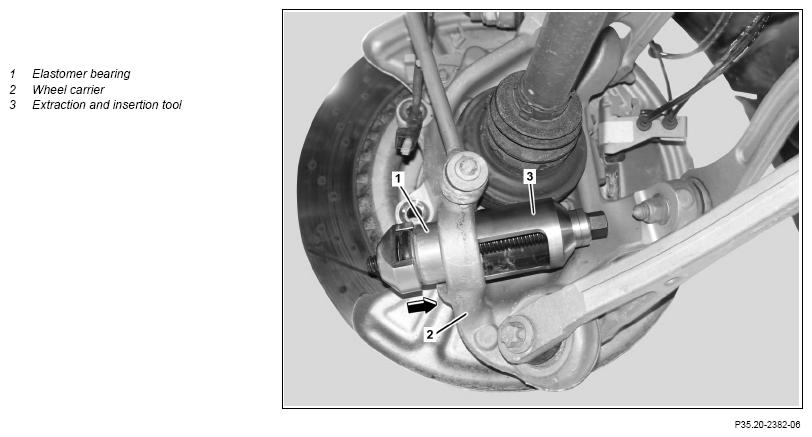

Removal direction

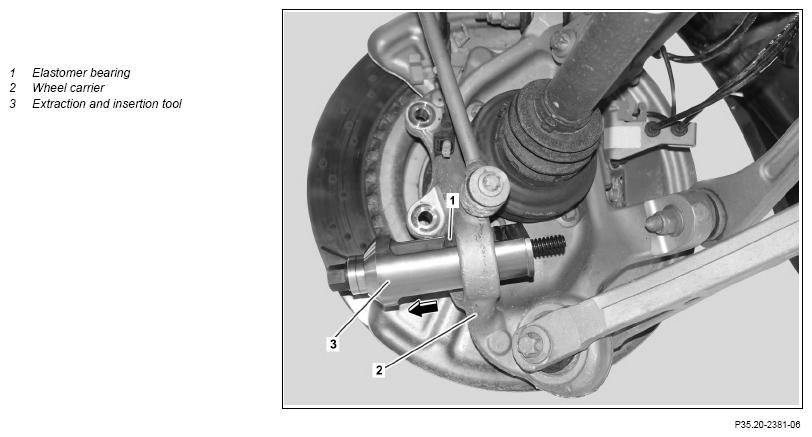

Installation direction
Fig 1: Rear Wheel Carrier Spring Control Arm Elastomer Bearing Components Location - Model 213.088/089/288/289 (Installation Direction Shown)
| Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | ||
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Remove | |||
| 1 | Remove spring control arm | AR35.20-P-0119MNE | |
| 2 | Detach brake caliper support with brake caliper and hang up to one side with lines still connected | Do not subject the lines to tension. Otherwise they may be damaged. |
AR42.10-P-0080LW |
| 3 | Grease spindle of extraction and insertion tool (3) with rolling-element bearing grease | ||
| High temperature anti-friction bearing grease (NLGI grade 2) | BB00.40-P-0265-01A | ||
| Fig 2 | |||
| 4 | Position extraction and insertion tool (3) on wheel carrier (2) and elastomer bearing (1) as shown | ||
| Fig 2 | |||
| 5 | Pull elastomer bearing (1) out of wheel carrier (2) in direction of arrow and remove | ||
| Install | |||
| 6 | Grease spindle of extraction and insertion tool (3) again with rolling-element bearing grease | ||
| High temperature anti-friction bearing grease (NLGI grade 2) | BB00.40-P-0265-01A | ||
| Fig 2 | |||
| 7 | Position extraction and insertion tool (3) with new elastomer bearing (1) on wheel carrier (2) as shown | Fig 2 | |
| 8 | Pull new elastomer bearing (1) into wheel carrier (2) | The elastomer bearing (1) must be seated in the center of the wheel carrier (2). |
|
| 9 | Detach extraction and insertion tool (3) | Fig 2 | |
| 10 | Attach brake caliper support together with brake caliper | AR42.10-P-0080LW | |
| 11 | Install spring control arm | AR35.20-P-0119MNE |
