Remove/Install Elastomer Bearing Of Spring Control Arm On Rear Axle Carrier - AR35.20-P-3405MNE

Model 213.064/088/089/264/288/289

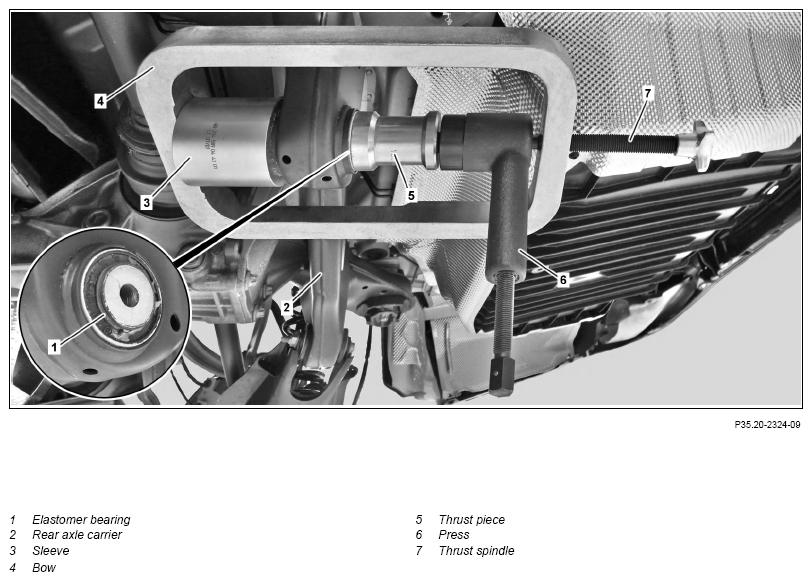

Removal shown

Fig 1: Rear Axle Carrier Spring Control Arm Elastomer Bearing Components Location - Model 213.064/088/089/264/288/289 (Removal Shown)

Courtesy of MERCEDES-BENZ USA

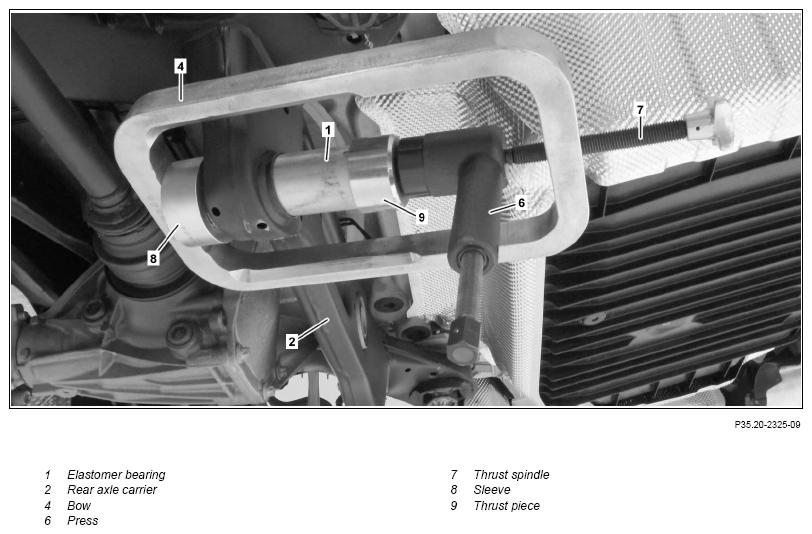

Installation shown

Courtesy of MERCEDES-BENZ USA

	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove underbody paneling.	Model 213.088/089/264/288/289	AR61.30-P-1001LWE
2	Remove diagonal strut.	Model 213.088/089/264/288/289
3	Remove spring link.	Model 213.064/264	AR35.20-P-0119MND
		Model 213.088/089/288/289	AR35.20-P-0119MNE
4	Remove exhaust system.	Model 213.064/264 with engine 276.8 except code 598 (Gasoline particulate filter (OPF) with sensor system)	AR49.10-P-7142MND
		Model 213.064/264 with engine 276.8 with code 598 (Gasoline particulate filter (OPF) with sensor system)	AR49.10-P-7142MNF
		Model 213.088/089/288/289 with engine 177	AR49.10-P-7142MNE
5	Position bracket (4) with sleeve (3), thrust piece (5) and press (6) on rear axle carrier (2) and elastomer bearing (1) as shown.	Use sleeve (3) with number 204 589 04 43 01 from extraction and insertion tool. Use bracket (4) with number 220 589 01 43 01 and thrust piece (5) with number 220 589 01 43 04 from press-out/press-in tool.
		Press	Fig 3
		Removal and installation tool	Fig 4
		Extraction and insertion tool	Fig 2
6	Press elastomer bearing (1) out of rear axle carrier (2).	The stroke of the press (6) is very low. The press (6) therefore has to be released several times, the thrust spindle (7) of the bracket (4) adjusted and the press (6) operated again.
	Install
7	Position bracket (4) with sleeve (8), thrust piece (9) and press (6) on rear axle carrier (2) and new elastomer bearing (1) as shown.	Use sleeve (8) with number 204 589 04 43 02 from extraction and insertion tool. Use thrust piece (9) with number 220 589 01 43 07 from press-out/press-in tool.
		Press	Fig 3
		Removal and installation tool	Fig 4
		Extraction and insertion tool	Fig 2
8	Press elastomer bearing (1) as far as possible into rear axle carrier (2).	The stroke of the press (6) is very low. The press (6) therefore has to be released several times, the thrust spindle (7) of the bracket (4) adjusted and the press (6) operated again.
9	Remove special tools.
10	Install spring link.	Model 213.064/264	AR35.20-P-0119MND
		Model 213.088/089/288/289	AR35.20-P-0119MNE
11	Install exhaust system.	Model 213.064/264 with engine 276.8 except code 598 (Gasoline particulate filter (OPF) with sensor system)	AR49.10-P-7142MND
		Model 213.064/264 with engine 276.8 with code 598 (Gasoline particulate filter (OPF) with sensor system)	AR49.10-P-7142MNF
		Model 213.088/089/288/289 with engine 177	AR49.10-P-7142MNE
12	Install diagonal strut.	Model 213.088/089/264/288/289
		Bolt, rear diagonal strut to spare wheel well/body	*BA61.10-P-1008-01L
13	Install underbody paneling.	Model 213.088/089/264/288/289	AR61.30-P-1001LWE

FRAME FLOOR ASSEMBLY

Number	Designation		Model 213
BA61.10-P-1008-01L	Bolt, rear diagonal strut to spare wheel well/body	Nm	50

Fig 2: Identifying Extraction And Insertion Tool (204 589 04 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Press (202 589 04 43 10)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Removal And Installation Tool (220 589 01 43 00)

Courtesy of MERCEDES-BENZ USA
