Remove/Install Elastomer Bearing Of Rear Mount Of Rear Axle Carrier - AR35.10-P-0046MND

Model 213.064/264

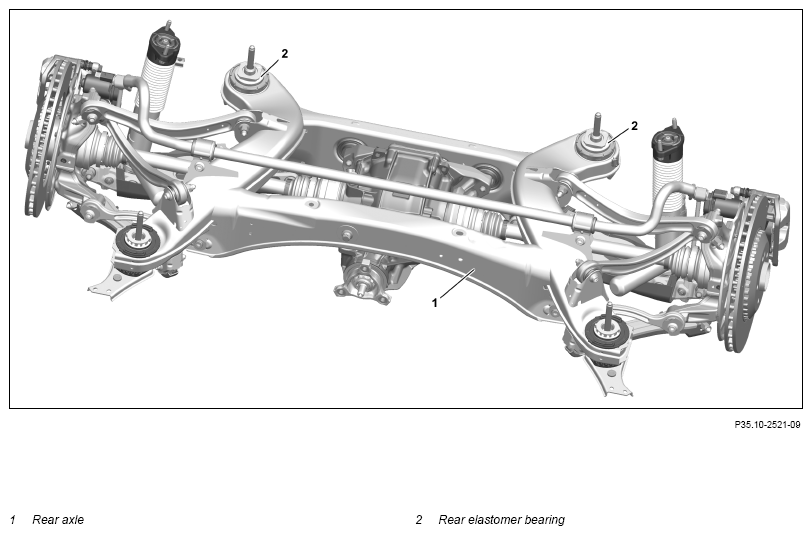

Fig 1: Rear Axle Carrier Front Mount Elastomer Bearing Components Location - Model 213.064/264

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on AIRmatic	Model 213.064/264 with code 489 (AIRMATIC)	AH32.22-P-1000-02LW
	Remove/install
1	Shift transmission to N position.
2	Secure vehicle on vehicle lift.		AR00.60-P-0100CW
3	Drain pressure of air suspension at rear axle using vehicle diagnosis system.
			AD00.00-P-2000-04B
4	Remove rear wheels.		AR40.10-P-1102A
5	Remove left and right underfloor paneling.	Model 213.264	AR61.30-P-1001LWE
6	Remove diagonal struts.	Model 213.264 Bolt, rear diagonal strut to spare wheel well/body	*BA61.10-P-1008-01L
7	Remove exhaust system.	Model 213.064/264 with engine 276.8 except code 598 (Gasoline particulate filter (OPF) with sensor system)	AR49.10-P-7142MND
8	Remove propeller shaft from rear axle differential, place to one side and fix in place.		AR41.10-P-0050LW
9	Unclip electric lines from holders for level sensors.
10	Disconnect electrical connectors from level sensors and place electric lines to one side.
11	Remove air springs.	Model 213.064/264 with code 489 (AIRMATIC)	AR32.22-P-1500MNE
12	Remove shock absorbers from spring links.		AR32.25-P-0110LW
13	Support rear axle (1) using major assembly mount and mounting plate.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
14	Remove rear screws from rear axle carrier.	Do not use an impact wrench. Otherwise, the threads will be damaged. Use compressed air to clean thread in frame floor assembly and check for correct seating of threaded inserts.
		Self-locking bolt securing rear decoupling element of rear axle carrier to frame floor assembly	*BA35.10-P-1002-01H
15	Carefully lower rear axle (1) at rear.	Do not subject brake hoses to tension. Otherwise the brake hoses will be damaged. Do not tilt shock absorbers in the spring control arms.
16	Remove rear elastomer bearings (2).		AR35.10-P-0040-03LW
		Always replace rear elastomer bearings (2) in pairs. Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
		Hydraulic hose (complete)	Fig 5
		Hollow cylinder	Fig 4
		Hand pump	Fig 3
		Extraction and insertion tool	Fig 2
		Securing belt	Fig 6
17	Install in the reverse order.

REAR AXLE CARRIER

Number	Designation			Model 213
BA35.10-P-1002-01H	Self-locking bolt securing rear decoupling element of rear axle carrier to frame floor assembly	Stage 1	Nm	100
		Stage 2: Loosen	∠°	180
		Stage 3	Nm	100
		Stage 4	∠°	90

FRAME FLOOR ASSEMBLY

Number	Designation		Model 213
BA61.10-P-1008-01L	Bolt, rear diagonal strut to spare wheel well/body	Nm	50

Fig 2: Identifying Extraction And Insertion Tool (204 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Securing Belt (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
