Remove/Install Elastomer Bearing Of Camber Strut On Rear Wheel Carrier - AR35.20-P-3404MNE
Model 213.088/089/288/289

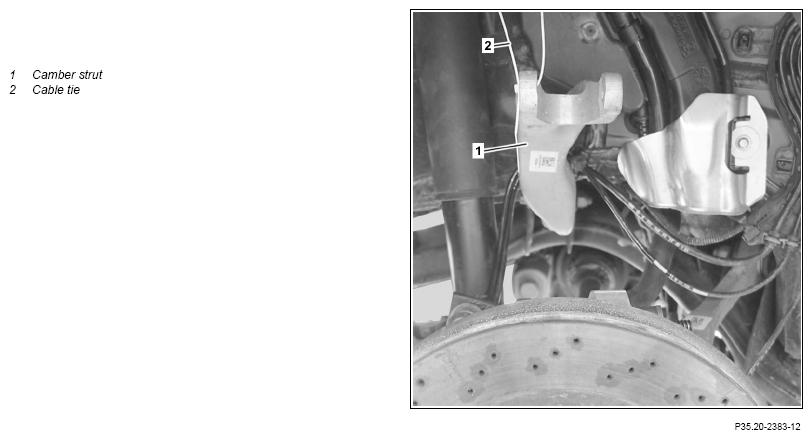

Fig 1: Rear Wheel Carrier Camber Strut Elastomer Bearing Components Location - Model 213.088/089/288/289
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove | |||
| 1 | Remove rear wheel | Remove/install wheel and tire assemblies | AR40.10-P-1102A |
| 2 | Unhook electrical line of electric parking brake from holder on wheel carrier (4) | ||
| 3 | Unhook electrical line of shock absorber from bracket on wheel carrier (4) | ||
| 4 | Remove bracket from brake cover plate (6) | ||
| 5 | Detach camber strut (1) from wheel carrier (4) and secure with a cable tie (2) to prevent it from falling down | ||

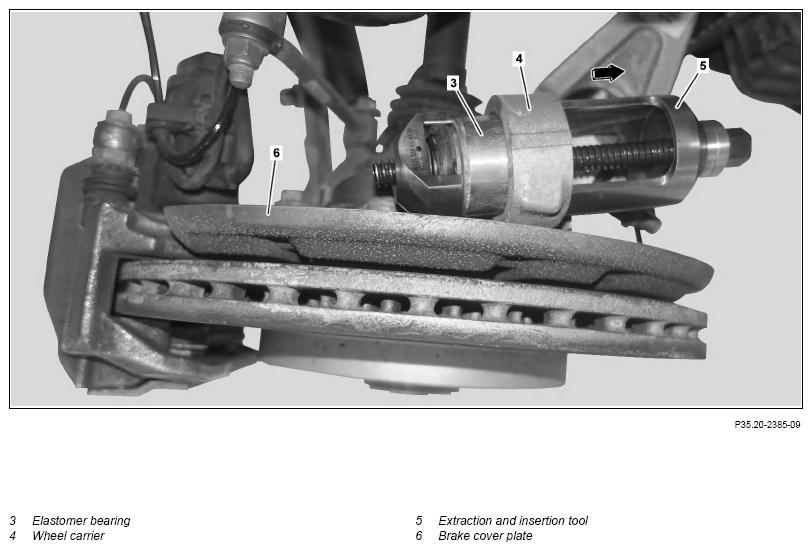

| Fig 2 | |||
| 6 | Grease spindle of extraction and insertion tool (5) with rolling-element bearing grease | ||
| High temperature anti-friction bearing grease (NLGI grade 2) | BB00.40-P-0265-01A | ||

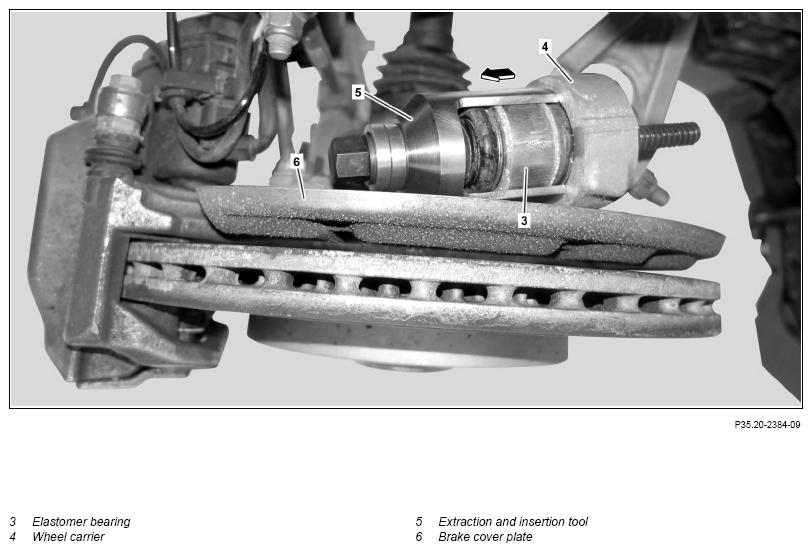

| Fig 3 | |||
| 7 | Position extraction and insertion tool (5), as shown, to wheel carrier (4) and elastomer bearings (3) | ||
| Fig 3 | |||
| 8 | Pull elastomer bearing (3) out of wheel carrier (4) in direction of arrow and remove | ||
| Install | |||
| 9 | Again grease spindle of extraction and insertion tool (5) with rolling-element bearing grease | ||
| High temperature anti-friction bearing grease (NLGI grade 2) | BB00.40-P-0265-01A | ||
| Fig 3 | |||
| 10 | Position extraction and insertion tool (5) with new elastomer bearing (3), as shown, onto wheel carrier (4) | ||
| Fig 3 | |||
| 11 | Draw elastomer bearing (3) in direction of arrow into wheel carrier (4) | The elastomer bearing (3) must be located in the middle in the wheel carrier (4). |
|
| 12 | Remove extraction and insertion tool (5) | ||
| 13 | Attach camber strut (1) to wheel carrier (4) | ||
| *BA35.20-P-1002-02L | |||
| Fig 2 | |||
| 14 | Mount bracket onto brake cover plate (6) | ||
| 15 | Hook electrical line of shock absorber into bracket on wheel carrier (4) | ||
| 16 | Hook electrical line of electric parking brake into bracket on wheel carrier (4) | ||
| 17 | Remount the rear wheel | Remove/install wheel-and-tire assemblies | AR40.10-P-1102A |
| 18 | Perform wheel alignment check | AR40.20-P-0200LW |
Bolt, camber strut to wheel carrier
| Number | Designation | Model 213 | ||
|---|---|---|---|---|
| BA35.20-P-1002-02L | Bolt, camber strut to wheel carrier | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | ||
