Remove/Install Cup Seal On Joint Ring Of Splined Rear Axle Shaft - AR35.30-P-0662-01OLC

Model 213, 238

REAR AXLE SHAFT, PLUGGED IN SHAFTS

Number	Designation			Model 213 Plugged in shafts	Model 238 Plugged in shafts
BF35.30-P-1001-01G	Filling capacity for joint housing	Ø82	g	80	80
		Ø95	g	100	100
		Ø102	g	120	120
		Ø106	g	130	130
		Ø112	g	140	140
		Ø116	g	150	150

Remove boot cap

Using protective jaw pads, clamp rear axle shaft into vise.
Using a hand coping saw, saw cup seal (37i) radially in the groove on the press-in edge so that a notch arises.
Saw carefully.

Otherwise the joint ring (37c) will be damaged.

Courtesy of MERCEDES-BENZ USA
Use a screwdriver to lift the notched area.

Courtesy of MERCEDES-BENZ USA
Starting at the standing away end, unscrew cup seal (37i) using suitable pliers until it is possible to lift the cup seal (37i) off the joint ring (37c).
Make sure that the rear axle shaft does not drop out of the joint ring (37c) before the parts have been marked relative to each other.
Mark installation position of rear axle shaft relative to joint ring (37c).
Remove clamps (37k).
Pull boot (37l) with cup seal (37i) off joint ring (37c) and slide back onto rear axle shaft.
When replacing both boots (37l) the opposite boot (37l) may be pushed over the rear axle shaft.

Courtesy of MERCEDES-BENZ USA

Install boot cap
Replace O-ring on joint ring (37c).
Do not oil or grease the O-ring.

Otherwise the cup seal (37i) on the joint ring (37c) can turn.

Rub O-ring with spirit to make it easier to install the cup seal (37i).
Mount cup seal (37i) with clamp (37k) and slide on as far as the end stop on the joint ring (37c). If necessary, drive fully home by tapping gently with a plastic mallet.
Push on the cup seal (37i) carefully.

Otherwise the O-ring will be damaged.
Fix cup seal (37i) in circumferential groove of joint ring (37c) by applying four blows around circumference (each blow offset by 90°).

Courtesy of MERCEDES-BENZ USA
Drive cup seal (37i) using a hammer and applying even blows into the circumferential groove of the joint ring (37c).
Ensure that the boot cap (37i) seats properly.

Courtesy of MERCEDES-BENZ USA
By positioning a drift (4 mm dia.) and applying even blows with the hammer, reposition the cup seal (37i) in the groove.

Courtesy of MERCEDES-BENZ USA
Measure diameter of joint housing.
The amount of grease required is dependent on the diameter of the joint housing. Measure diameter (A) on outer joint and diameter (B) on inner ball joint using vernier caliper. For measuring points, see arrows in illustration.

Courtesy of MERCEDES-BENZ USA
Fill ball joint with new grease
Slide boot (37l) onto cup seal (37i).
Ensure that the ridge (arrow) on the boot (37l) is resting between the ridges on the boot cap (37i). After the boot is pushed on, no groove on the rear axle shaft should be visible at the small diameter of the boot (37l). This indicates that the sealing bead of the boot (37l) is fixed in the first groove.

Courtesy of MERCEDES-BENZ USA

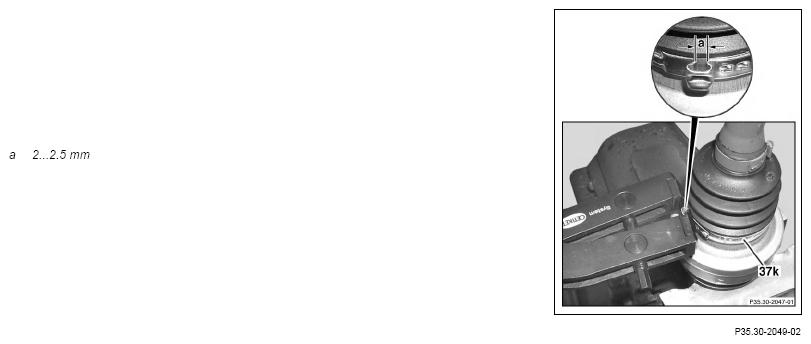

Mount clamps (37k).
Ensure that dimension (a), measured on the inside, is not exceeded or fallen below.

Courtesy of MERCEDES-BENZ USA
