Press Off/Press On/Caulk Joint Hub Of Splined Rear Axle Shaft - AR35.30-P-0662-02OLC

Model 213, 238

	Shell halves (2 ea.) for pressing off and caulking the inner constant velocity joint.		WF58.50-P-3530-01A
	Staking tool for securing joint hub on rear halfshaft		WF58.50-P-3530-07P

Fig 1: Identifying Drift (116 589 15 15 00)

Courtesy of MERCEDES-BENZ USA

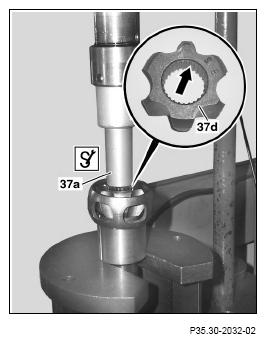

Press off joint hub

1. Press off joint hub (37d) with half shells and drift (37a) from rear axle shaft.
2. Check splined profile on joint hub (37d) and rear axle shaft for damage.

   The joint hub (37d) can be used again if, on its splined profile (arrow), no more than 3 teeth per caulking have broken out, up to a maximum length of 6 mm.

   Courtesy of MERCEDES-BENZ USA

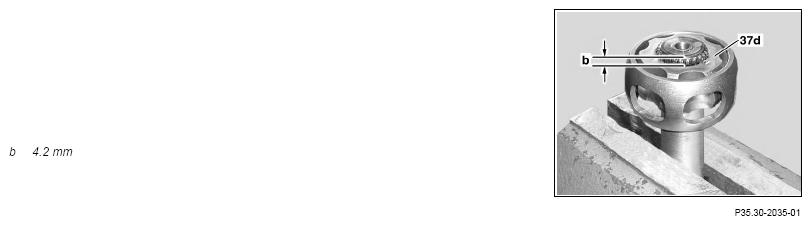

   Press on joint hub

3. Clamp rear axle shaft using protective jaws into vise.
4. Press on joint hub (37d) using suitable tool until dimension (b) is reached.

   Courtesy of MERCEDES-BENZ USA

   Caulk joint hub

5. Clamp rear axle shaft in vise so that the joint hub (37d) is resting on the half shells and the ball retainer can still be rotated.
6. Mount new caulkings (arrow) using caulker in the center between the caulkings already there.

   Courtesy of MERCEDES-BENZ USA

   In order to prevent damage (e.g. breaking away) of the ball raceways, the caulkings (arrow) must be made as close as possible to the splined profile.

   Courtesy of MERCEDES-BENZ USA
