Replace Deep-Groove Ball Bearing In Intermediate Shaft - AR33.30-P-0625-02LWX

Model 204.08/09/28/29/38/90/93/98/99, 205, 207, 212, 213, 216, 217, 218, 221, 222, 238, 253, 257, 290

INTERMEDIATE SHAFT

Number	Designation				Model 204	Model 205
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	478.5 mm	mm		334, 5...334, 7
			479.3 mm	mm	-	-
			504.3 mm	mm	368, 5...368, 7	-
			510.0 mm	mm	-	366, 0...366, 2

INTERMEDIATE SHAFT

Number	Designation				Model 207	Model 212
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	478.5 mm	mm	-	-
			479.3 mm	mm	-	-
			504.3 mm	mm	368, 5...368, 7	368, 5...368, 7
			510.0 mm	mm	-	-

INTERMEDIATE SHAFT

Number	Designation				Model 213	Model 216
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	478.5 mm	mm	334, 5...334, 7
			479.3 mm	mm	-	-
			504.3 mm	mm	-	368, 5...368, 7
			510.0 mm	mm	366, 0...366, 2	-

INTERMEDIATE SHAFT

Number	Designation				Model 217	Model 218
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	478.5 mm	mm	-	-
			479.3 mm	mm	-	-
			504.3 mm	mm	-	368, 5...368, 7
			510.0 mm	mm	366, 0...366, 2	-

INTERMEDIATE SHAFT

Number	Designation				Model 221	Model 222
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	478.5 mm	mm	-	-
			479.3 mm	mm	-	-
			504.3 mm	mm	368, 5...368, 7	-
			510.0 mm	mm	-	366, 0...366, 2

INTERMEDIATE SHAFT

Number	Designation				Model 238	Model 253
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	478.5 mm	mm	334, 5...334, 7	334, 5...334, 7
			479.3 mm	mm	-	-
			504.3 mm	mm	-	-
			510.0 mm	mm	366, 0...366, 2	366, 0...366, 2

INTERMEDIATE SHAFT

Number	Designation				Model 257	Model 290
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	478.5 mm	mm	334, 5...334, 7	334, 5...334, 7
			479.3 mm	mm	-	-
			504.3 mm	mm	-	-
			510.0 mm	mm	366, 0...366, 2	366, 0...366, 2

Fig 1: Identifying Pulling Arms (116 589 12 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller, Two-Arm (000 589 88 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Thrust Piece Set (711 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Drift (460 589 15 15 00)

Courtesy of MERCEDES-BENZ USA

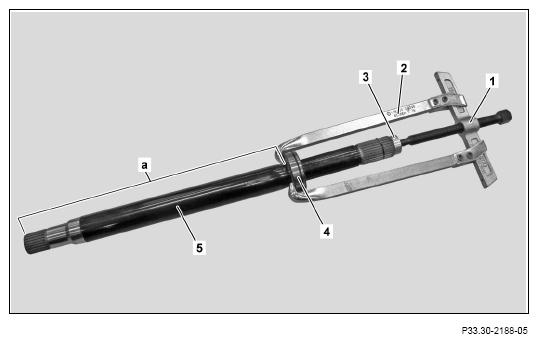

Position puller (1) with mounted arms (2) on intermediate shaft (5) and deep-groove ball bearing (4).
Position thrust piece (3) between (1) and intermediate shaft (5).
Tighten . puller (1) until grooved ball bearing (4) can be removed from intermediate shaft (5).
Clean bearing seat of intermediate shaft (5) using a clean rag and check for damage.
If the bearing seat is damaged,

↓

install a new intermediate shaft (5).
Position deep-groove ball bearing (4) onto intermediate shaft (5) and press on using drift up to length measurement (a) is reached.
Replace deep-groove ball bearing (4).

Pay attention to installation position.
Check that grooved ball bearing (4) is seated correctly.

Courtesy of MERCEDES-BENZ USA
