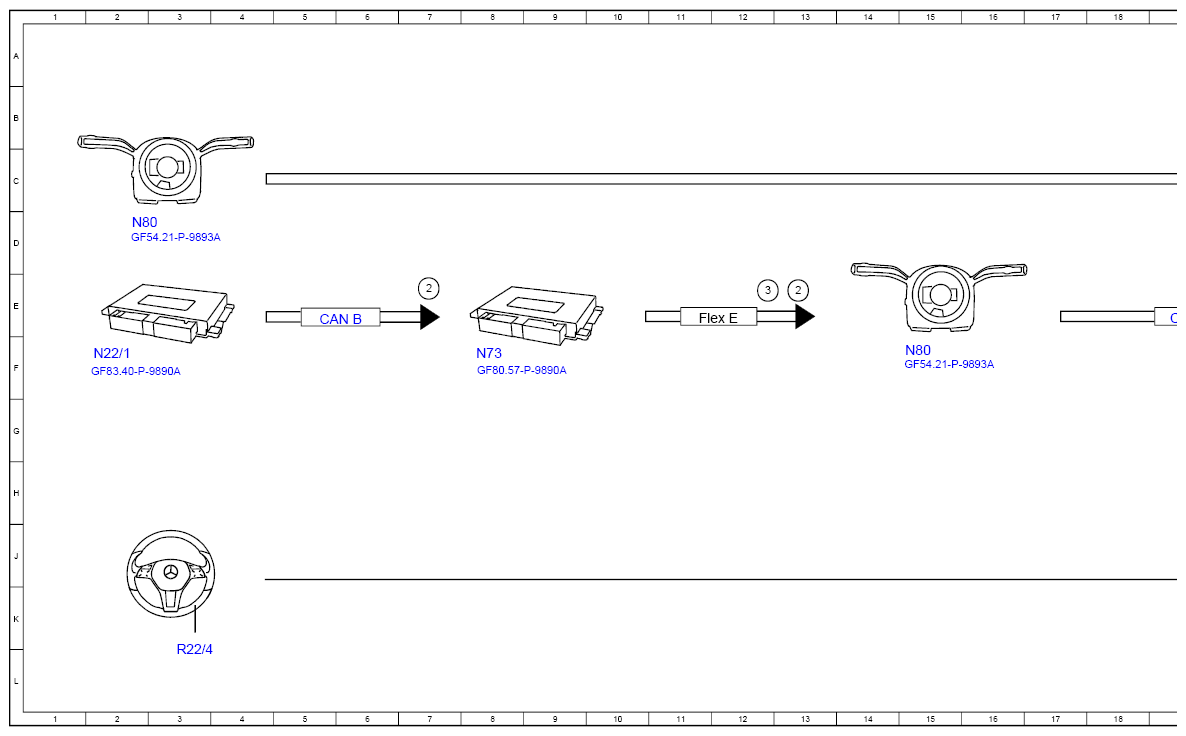

Function Schematic For Actuating Steering Wheel Heater - PE46.11-P-2501-97C
Model 213, 238, 257, 290 as of model year 2021 with code 443 (Heated steering wheel)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Steering wheel heater switch, status | 22C |
| 2 | Interior temperature, signal | 13E |
| 2 | Interior temperature, signal | 22E |
| 2 | Interior temperature, signal | 7E |
| 3 | Circuit 15, status | 12E |
| 3 | Circuit 15, status | 21E |
| 4 | Heating element temperature sensor, signal | 22J |
| 5 | Steering wheel heater, actuation | 28D |
| 6 | Steering wheel heater switch, status | 28G |
| CAN B | Interior CAN | 5E |
| CAN LR | CAN for steering wheel | 20C |
| CAN LR | CAN for steering wheel | 27H |
| CAN LR | CAN for steering wheel | 19E |
| Flex E | Chassis FlexRay | 11E |
| N135 | Steering wheel electronics | 23G |
| N22/1 | CIimate control unit | 2F |
| N73 | Electronic ignition switch control unit | 8F |
| N80 | Steering column module control unit | 2D |
| N80 | Steering column module control unit | 30H |
| N80 | Steering column module control unit | 15F |
| R22/4 | Steering wheel heater | 3L |
| R22/4 | Steering wheel heater | 31F |
