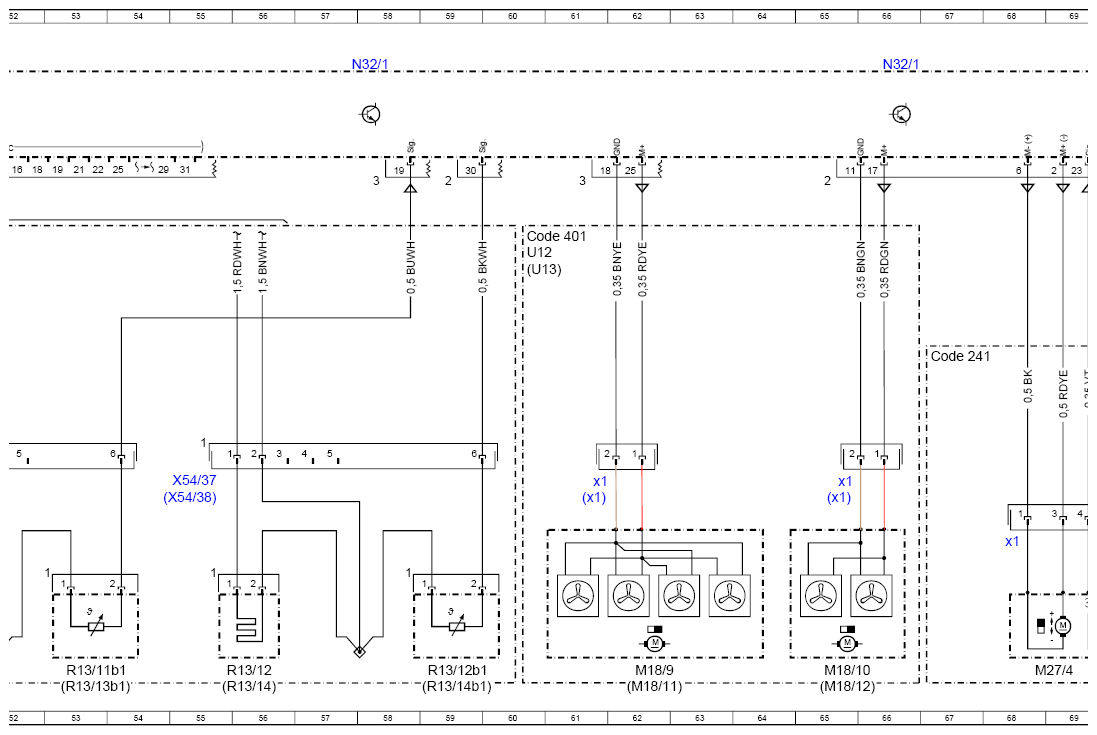

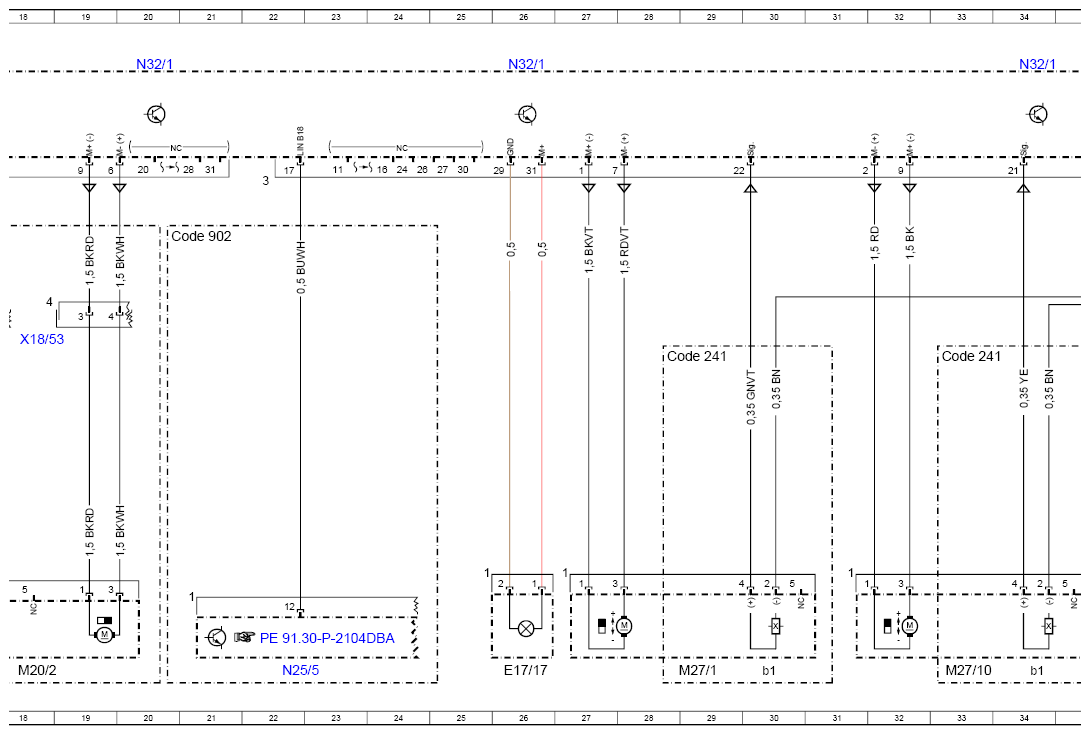

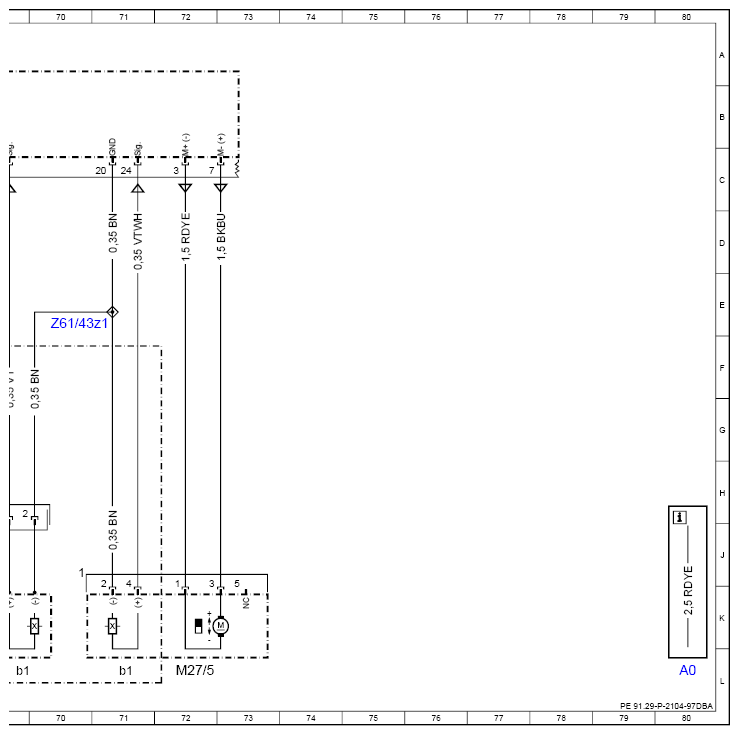

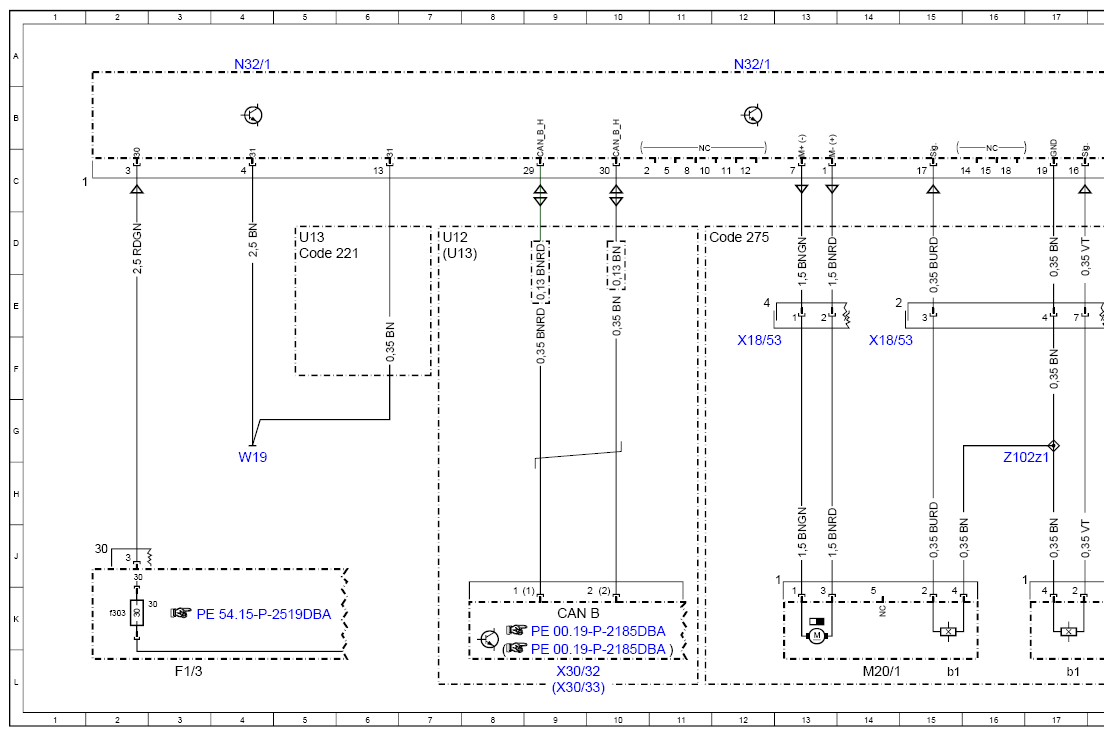

Wiring Diagram Of Driver-Side Seat Control Module - PE91.29-P-2104-97DBA
Model 213 up to model year 2021 Control unit N32/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| CAN B | Interior CAN | 9K |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 5D |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 41F |
| Code 241 | Left electrically adjustable front seat with memory | 33F |
| Code 241 | Left electrically adjustable front seat with memory | 28F |
| Code 241 | Left electrically adjustable front seat with memory | 41F |
| Code 241 | Left electrically adjustable front seat with memory | 67F |
| Code 275 | Memory package | 11D |
| Code 401 | Seat climate control for driver and front passenger | 60D |
| Code 873 | Seat heater for driver and front passenger | 41D |
| Code 902 | Seat heater Plus for driver and front passenger | 20D |
| Code 902 | Seat heater Plus for driver and front passenger | 48D |
| E17/17 | Left rear footwell lamp | 26L |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f303 | Fuse 303 | 2K |
| M18/10 | Left front backrest seat ventilation motors | 65L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 65H |
| M18/11 | Right front seat cushion seat ventilation motors | 62L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 61H |
| M18/12 | Right front backrest seat ventilation motors | 65L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 65H |
| M18/9 | Left front seat cushion seat ventilation motors | 62L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 61H |
| M20/1 | Steering column in/out adjustment motor | 14L |
| M20/1b1 | Steering column in/out Hall sensor | 15L |
| M20/2 | Steering column up/down adjustment motor | 18L |
| M20/2b1 | Steering column up/down Hall sensor | 17L |
| M27/1 | Driver seat fore/aft adjustment motor | 29L |
| M27/10 | Driver seat height adjustment motor | 33L |
| M27/10b1 | Driver seat, seat height adjustment Hall sensor, | 34L |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 30L |
| M27/4 | Driver seat head restraint adjustment motor | 68L |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 69L |
| M27/4x1 | Head restraint adjustment motor electrical connector, driver seat | 68J |
| M27/5 | Driver seat backrest inclination adjustment motor | 72L |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 71L |
| M27/8 | Seat cushion length adjustment motor, driver seat | 36L |
| M27/8b1 | Seat cushion length adjustment Hall sensor, driver seat | 37L |
| M27/8x1 | Seat cushion length adjustment motor electrical connector, driver seat | 35J |
| M27/9 | Seat inclination adjustment motor, driver seat | 40L |
| M27/9b1 | Seat inclination adjustment Hall sensor, driver seat | 39L |
| N25/5 | Driver seat heater control unit | 22L |
| N32/1 | Driver seat control unit | 4A |
| N32/1 | Driver seat control unit | 20A |
| N32/1 | Driver seat control unit | 26A |
| N32/1 | Driver seat control unit | 12A |
| N32/1 | Driver seat control unit | 50A |
| N32/1 | Driver seat control unit | 66A |
| N32/1 | Driver seat control unit | 34A |
| N32/1 | Driver seat control unit | 42A |
| N32/1 | Driver seat control unit | 58A |
| R13/1 | Left front seat cushion heater pad | 44L |
| R13/11 | Left front seat cushion side bolster heater pad | 50L |
| R13/11b1 | Left front seat cushion side bolster heater pad temperature sensor | 53L |
| R13/12 | Left front seat backrest side bolster heater pad | 56L |
| R13/12b1 | Left front seat backrest side bolster heater pad temperature sensor | 59L |
| R13/13 | Right front seat cushion side bolster heater pad | 50L |
| R13/13b1 | Right front seat cushion side bolster heater pad temperature sensor | 53L |
| R13/14 | Right front seat backrest side bolster heater pad | 56L |
| R13/14b1 | Right front seat backrest side bolster heater pad temperature sensor | 59L |
| R13/2 | Left front seat backrest heater pad | 46L |
| R13/3 | Right front seat cushion heater pad | 44L |
| R13/4 | Right front seat backrest heater pad | 46L |
| U12 | Valid for left-hand drive vehicles | 60D |
| U12 | Valid for left-hand drive vehicles | 41F |
| U12 | Valid for left-hand drive vehicles | 7D |
| U12 | Valid for left-hand drive vehicles | 48F |
| U13 | Valid for right-hand drive vehicles | 5D |
| U13 | Valid for right-hand drive vehicles | 60E |
| U13 | Valid for right-hand drive vehicles | 41F |
| U13 | Valid for right-hand drive vehicles | 7D |
| U13 | Valid for right-hand drive vehicles | 48F |
| W19 | Right front seat crossmember ground point | 4G |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 12F |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 14F |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 18F |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 9L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 9L |
| X54/29 | Driver seat heater feed electrical connector | 43H |
| X54/29 | Driver seat heater feed electrical connector | 49H |
| X54/30 | Front passenger seat heater feed electrical connector | 43H |
| X54/30 | Front passenger seat heater feed electrical connector | 49H |
| X54/37 | Left front seat backrest heater pad electrical connector | 46H |
| X54/37 | Left front seat backrest heater pad electrical connector | 55H |
| X54/38 | Right front seat backrest heater pad electrical connector | 55H |
| X54/38 | Right front seat backrest heater pad electrical connector | 45H |
| Z102z1 | Steering column adjustment electric motor connector sleeve | 17G |
| Z61/20z1 | Connector sleeve, circuit 31 Hall sensors, driver's seat | 38E |
| Z61/43z1 | Driver-side Hall sensor ground connection 2 connector sleeve | 70E |
