Removing, Installing Windowbag - AR91.60-P-0693LWE

Model 213

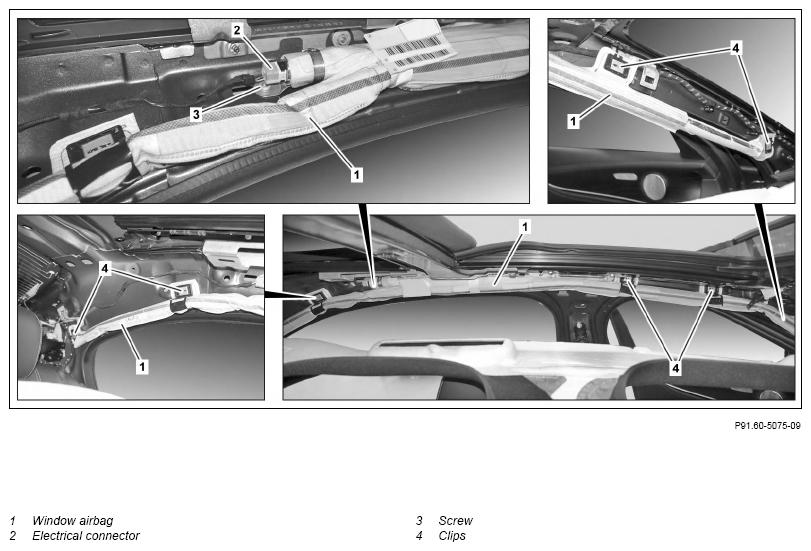

Fig 1: Windowbag Components Location - Model 213 (Left Side Shown)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle on model 213.0

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Put left front seat into horizontal position	When removing the right windowbag (1).
2	Put right front seat into horizontal position	When removing the left windowbag (1).
3	Disconnect ground line to battery		AR54.10-P-0003LW
4.1	Remove headliner and set down on seats	Model 213.0/1	AR68.30-P-4300LWE
4.2	Remove headliner	Model 213.2	AR68.30-P-4300LWS
5	Release and disconnect electrical connection (2)	Make sure that electrical connector (2) engages properly.
6	Unscrew bolt (3)	Bolt, holder for windowbag gas generator to A-pillar/roof frame	*BA91.60-P-1004-01O

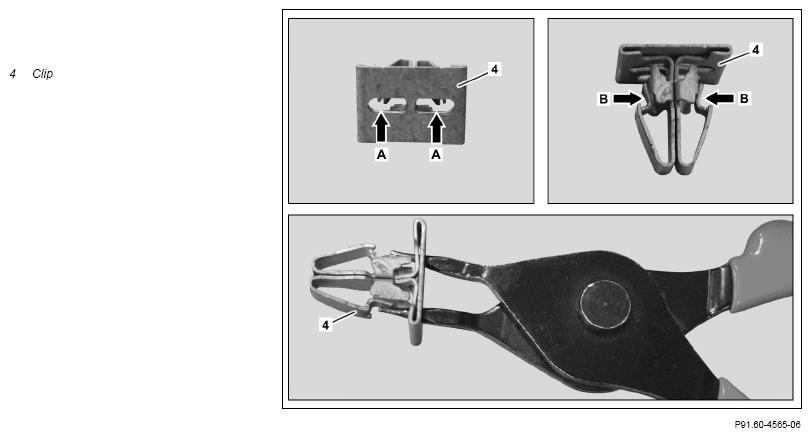

7	Use pliers and put through the openings (arrows A) to press tabs (arrows B) together and remove clamps (4)	Model 213.1 A further clamp (4) is installed in the area of the C-pillar.
8	Unhook gas generator and remove windowbag (1)
9	Install in the reverse order
10	Check Supplemental Restraint System (SRS) with diagnostic system	When replacing the windowbag (1).
			AD00.00-P-2000-04B
