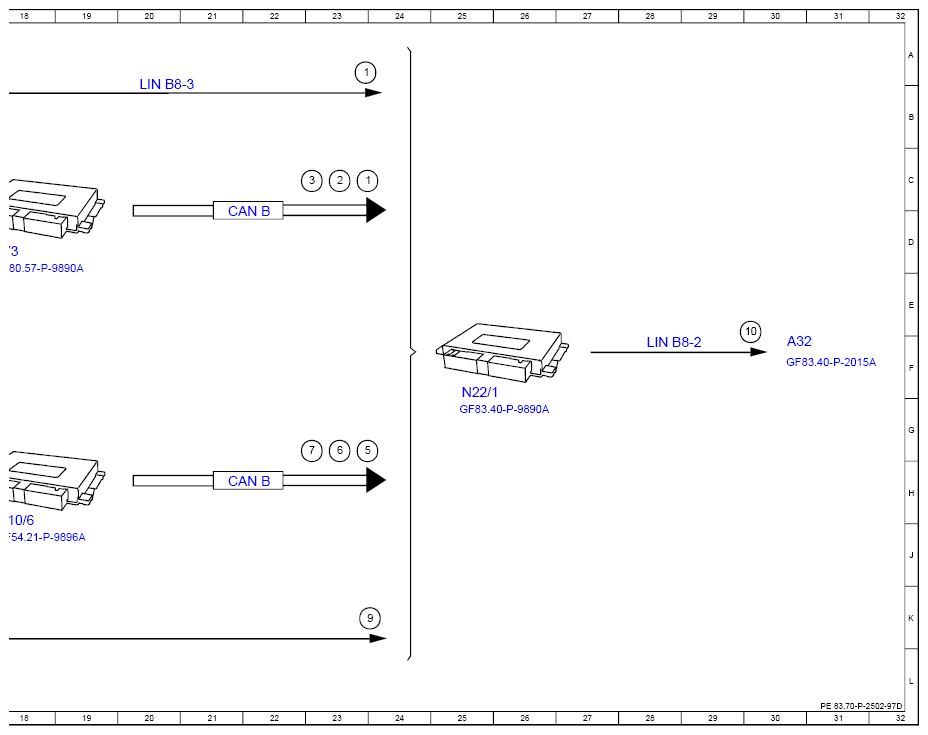

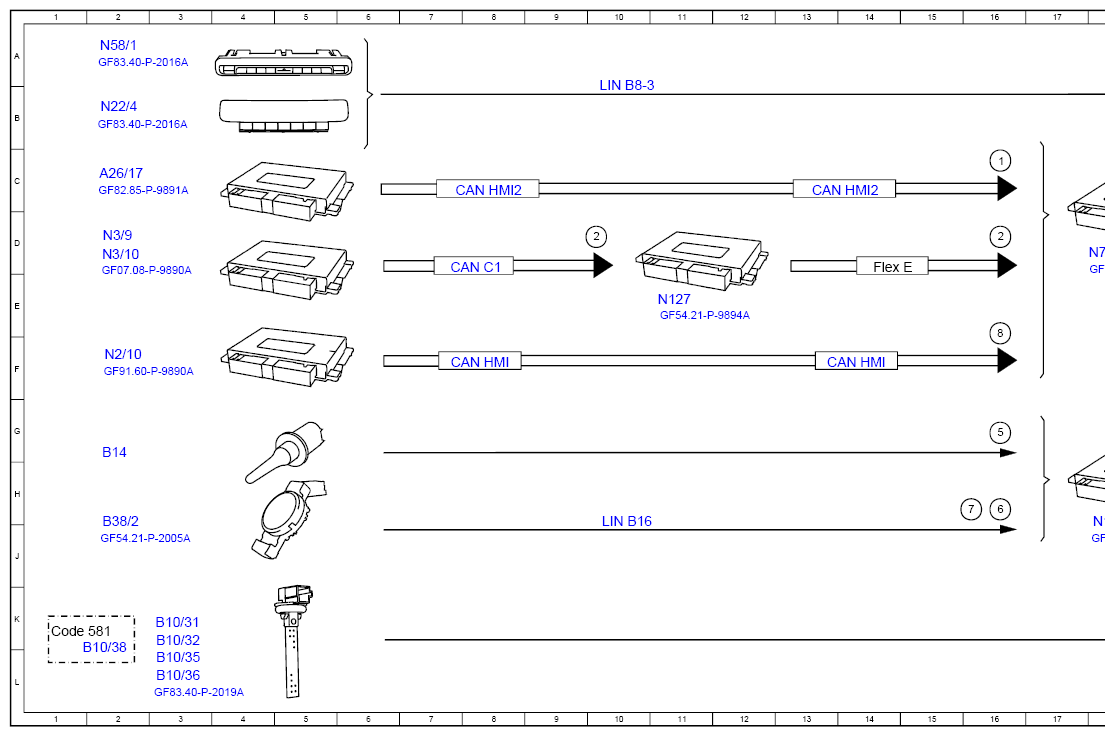

Function Schematic For Actuating PTC Heater Booster - PE83.70-P-2502-97D
Model 213 with engine 264, 274 as of model year 2021 with code 401 (Climatised front seats) except code 913 (Hot country code) except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 213 with engine 264, 274 as of model year 2021 with code 824 (Add.parts for countries w.low temperatures) except code 913 (Hot country code) except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 213 with engine 264, 274 as of model year 2021 with code 873 (Left and right drivers seat hea
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 23C |
| 1 | Operation, signal | 16C |
| 1 | Operation, signal | 24B |
| 10 | PTC heater booster, actuation | 30F |
| 2 | Coolant temperature, signal | 23C |
| 2 | Coolant temperature, signal | 16D |
| 2 | Coolant temperature, signal | 10D |
| 3 | Circuit 15, status | 23C |
| 5 | Outside temperature sensor, signal | 24G |
| 5 | Outside temperature sensor, signal | 16G |
| 6 | Dew point temperature, signal | 16J |
| 6 | Dew point temperature, signal | 23H |
| 7 | Solar radiation, signal | 23H |
| 7 | Solar radiation, signal | 16J |
| 8 | Crash, signal | 16F |
| 9 | Air outlet temperature sensor, signal | 24K |
| A26/17 | Head unit | 2C |
| A32 | AC housing | 30F |
| B10/31 | Left side air vent air outlet temperature sensor | 3K |
| B10/32 | Right side air vent air outlet temperature sensor | 3K |
| B10/35 | Left footwell vent air outlet temperature sensor | 3L |
| B10/36 | Right footwell vent air outlet temperature sensor | 3L |
| B10/38 | Rear passenger compartment footwell vent air outlet temperature sensor | 2L |
| B14 | Outside temperature sensor | 2G |
| B38/2 | Rain/light sensor with additional functions | 2J |
| CAN B | Interior CAN | 21D |
| CAN B | Interior CAN | 21H |
| CAN C1 | CAN 1 for drive | 8D |
| CAN HMI | User interface CAN | 8F |
| CAN HMI | User interface CAN | 14F |
| CAN HMI2 | User interface CAN 2 | 8C |
| CAN HMI2 | User interface CAN 2 | 13C |
| Code 581 | THERMOTRONIC automatic air conditioning | 1K |
| Flex E | Chassis FlexRay | 14D |
| LIN B16 | Rain and light sensor LIN | 10J |
| LIN B8-2 | LIN 2 for climate control system | 28F |
| LIN B8-3 | LIN 3 for climate control system | 20B |
| LIN B8-3 | LIN 3 for climate control system | 10B |
| N10/6 | Front SAM control unit | 18J |
| N127 | Drivetrain control unit | 11E |
| N2/10 | Supplemental restraint system control unit | 2F |
| N22/1 | Climate control, control unit | 25F |
| N22/4 | Rear air conditioning operating unit | 2B |
| N3/10 | ME-SFI [ME] control unit | 2D |
| N3/9 | CDI control unit | 2D |
| N58/1 | Climate control operating unit | 2A |
| N73 | Electronic ignition switch control unit | 18D |
