Remove/Install Side Air Nozzle - AR83.10-P-4501LW

Model 205

Model 213

Model 253

Shown on model 205.### 1#

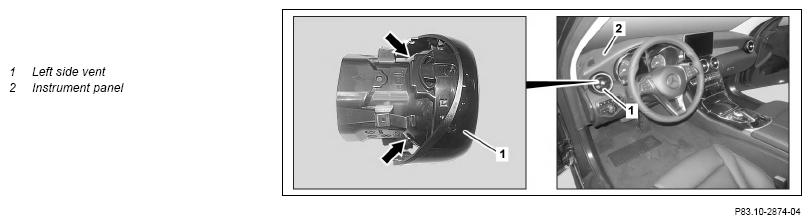

Fig 1: Side Air Nozzle/Vent Components Location - Model 213 (Shown On Model 205.### 1#)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust the steering column backwards and downwards into its final position	Model 205.### 1#, 213.### 1#, 253.### 1# 36
2	Insert extraction hook into side notches (arrows) of left side air vent (1) and pull left side air vent (1) out of instrument panel (2)	Make sure that "TOP" marking on left side air vent (1) is pointing upwards.
		Extraction hook	Fig 2
3	Install in the reverse order

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
