Refrigerant Pressure Sensor, Basic Function - GF83.40-P-2021A
Model all (CAR)
General
The pressure sensor records the refrigerant pressure at the high-pressure side of the air conditioning system and is read in directly by the climate control control system. The refrigerant pressure sensor operates in a pressure value range of approx. 0 to 35 bar.
Location

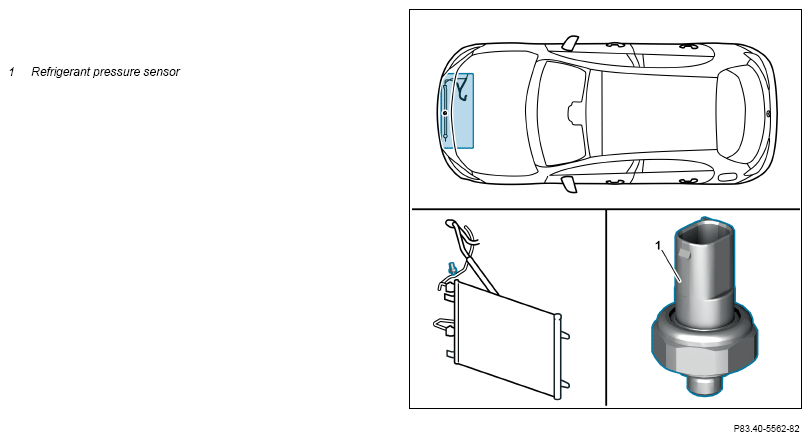

The pressure sensor (1) is screwed into the connection fitting of the refrigerant line (high-pressure side) in the area of the condenser.
Function requirements
- Circuit 15 ON
- Climate control switched on
| Component description | |||
| Refrigerant pressure sensor, component description | Model 223 with engine 177 | GF83.40-P-2202A |
