Outlet Air Temperature Sensor, Basic Function - GF83.40-P-2019A
Model all (CAR)
General
The outlet air temperature sensors measure the temperatures in the air ducts to the respective air outlets. The climate control controller reads in the signals from the outlet air temperature sensors directly.
Location

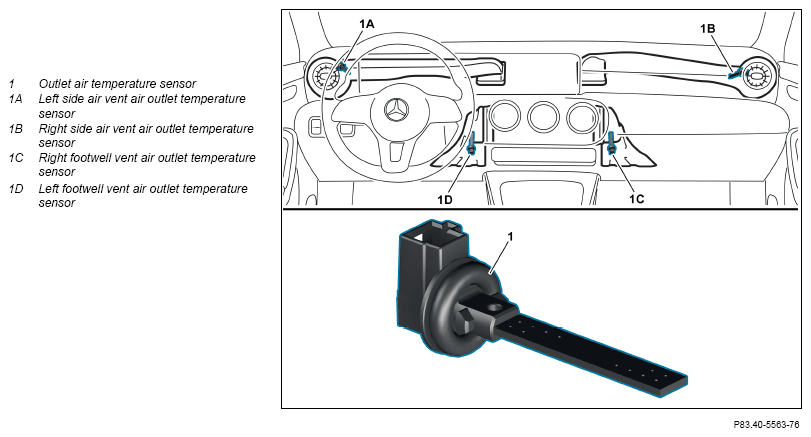

The outlet air temperature sensors (1) are located in the air ducts to the side and footwell vents.
Depending on the model and equipment installed, additional outlet air temperature sensors (1) may be located in the air ducts under the center console.
Function requirements
- Circuit 15 ON
- Climate control switched on
| Component description | |||
| Air outlet temperature sensor, component description | Model 243 | GF83.30-P-2133B | |
| Air outlet temperature sensor, component description | Model 223 | GF83.57-P-2130A |
