(Remove/Install Flywheel/Drive Plate - AR03.30-P-8001OGW)

Engine 642 in model 213, 238, 253

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove the transmission	Model 213, 238 with engine 642 with transmission 725.0 with code M005 (4MATIC)	AR27.10-P-0500OLD
		Model 253 with engine 642 with transmission 725.0 with code M005 (4MATIC)	AR27.10-P-0500LWX
		Model 213 with engine 642 with transmission 725.0 except code M005 (4MATIC)	AR27.10-P-0500OLC

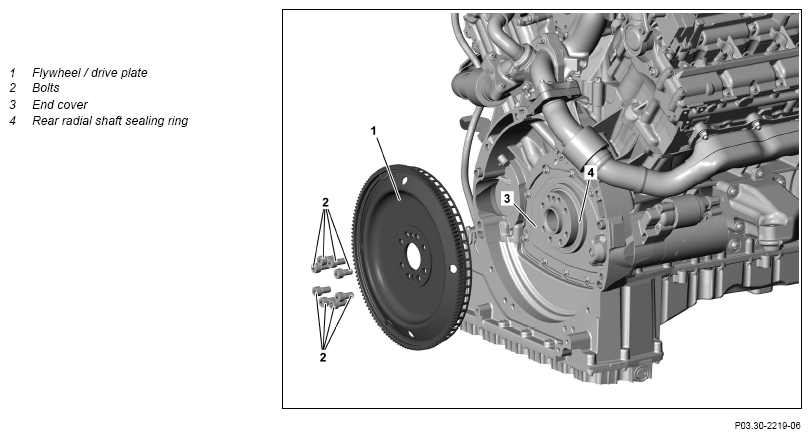

2	Remove screw/bolts (2) and remove flywheel/drive plate (1)		AR03.30-P-8001-02MM
		Screw/bolt, two-mass flywheel/drive plate to crankshaft	*BA03.30-P-1002-01G
		Socket wrench bit	Fig 1
		Retaining lock	Fig 2
3	Check rear radial shaft sealing ring (4) for leaktightness and damage	If leaky or damaged ↓ Replace end cover (3).	AR01.40-P-8913OGW
4	Install in the reverse order
5	Perform default initialization and subsequently sensor rotor adaptation	When replacing the flywheel/drive plate (1).
		Model 238 with engine 642	AD00.00-P-2000-06LWO
		Model 213, 253 with engine 642	AD00.00-P-2000-04B

FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 642
BA03.30-P-1002-01G	Screw/bolt, two-mass flywheel/drive plate to crankshaft	Stage 1	Nm	45
		Stage 2	∠°	90

Fig 1: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Retaining Lock (112 589 03 40 00)

Courtesy of MERCEDES-BENZ USA
