(Remove/Install Rear Muffler - AR49.10-P-4952OLC)

Engine 654 in model 213, 238

Courtesy of MERCEDES-BENZ USA

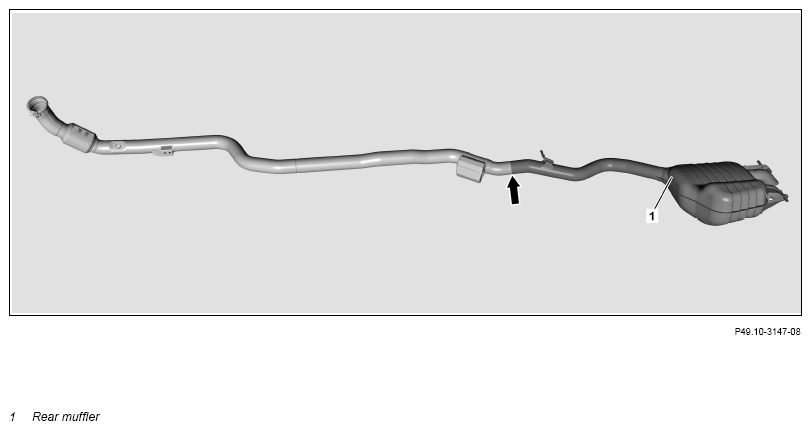

Shown on model 213 except for code 971 (exhaust system with DPF generation 1.5)

Courtesy of MERCEDES-BENZ USA

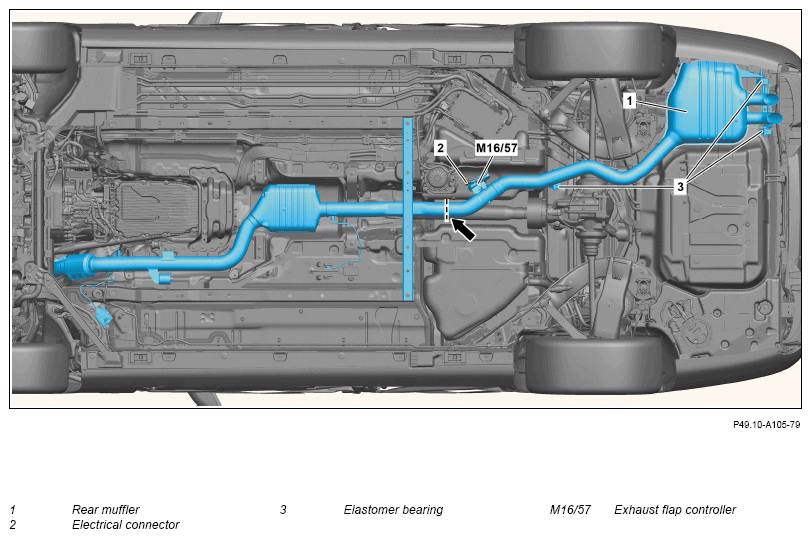

Shown on model 213.011 with code 971 (exhaust system with DPF Generation 1.5)

Shown on model 213.011

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Raise vehicle.		AR00.60-P-1002LWG
		: Only lower vehicle after the leak test.
2	Release and disconnect the electrical connector (2).	Engine 654 in model 213, 238 with code 971 (Exhaust system with DPF, generation 1.5)
3	Support rear muffler (1) at the rear.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
4.1	Disconnect rear muffler (1) at separating point (arrow) using a chain pipe cutter.	If there is no clamp installed. : Install a new clamp.
		Engine 654 in model 238Clamp, connecting point for front of exhaust system to rear of exhaust system	*BA49.10-P-1005-02J
		Engine 654 in model 213Clamp, connecting point for front of exhaust system to rear of exhaust system	*BA49.10-P-1005-02H
4.2	Remove rear muffler (1) at separating point (arrow)	If a clamp is installed. : Replace clamp.
		Engine 654 in model 238Clamp, connecting point for front of exhaust system to rear of exhaust system	*BA49.10-P-1005-02J
		Engine 654 in model 213Clamp, connecting point for front of exhaust system to rear of exhaust system	*BA49.10-P-1005-02H
5	Remove the rear-left diagonal strut.	Engine 654 in model 213.2 with code 971 (Exhaust system with DPF, generation 1.5)	AR61.10-P-5142LWP
6	Remove rear muffler (1) from the elastomer bearings (3) and remove downwards.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
		Wet elastomer bearings (3) with lubricant.
		Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
	Clean
7	Remove combustion and corrosion residues a1 separating point (arrow).
	Check
8	Check elastomer bearings (3) for damage and wear.	If damage is identified: ↓ Replace elastomer bearings (3).
		Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A

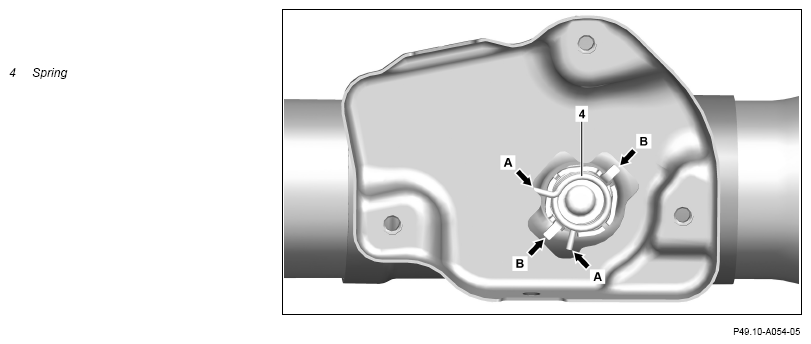

9	Remove the exhaust gas flap controller (M16/57) from the rear muffler (1).	Engine 654 in model 213, 238 with code 971 (Exhaust system with DPF, generation 1.5) When replacing rear muffler (1). Ensure exhaust gas flap is correctly positioned (arrows B). Incorrect assembly will result in damage to exhaust gas flap controller (M16/57). Ensure that springs (4) between exhaust gas flap controller (M16/57) and the exhaust gas flap are correctly seated (arrows A). Incorrect assembly will result in damage to exhaust gas flap controller (M16/57).
		Bolt, exhaust flap controller to exhaust flap housing (bracket)	*BA14.20-P-1017-01Q
10	Install in the reverse order.
	Check
11	Check installation position and unobstructed movement of exhaust system.	If there are problems, ↓ Correct the installation position of the exhaust system.
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Perform engine test run and check exhaust system for leak tightness.
13	Lower vehicle.		AR00.60-P-1002LWG
