Remove/Install Start/Stop Switch - AR54.25-P-4000LWE
Model 213, 238
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim piece to passenger-side instrument panel | AR68.10-P-1187LWE | |
| 2 | Disconnect plug (1) | ||

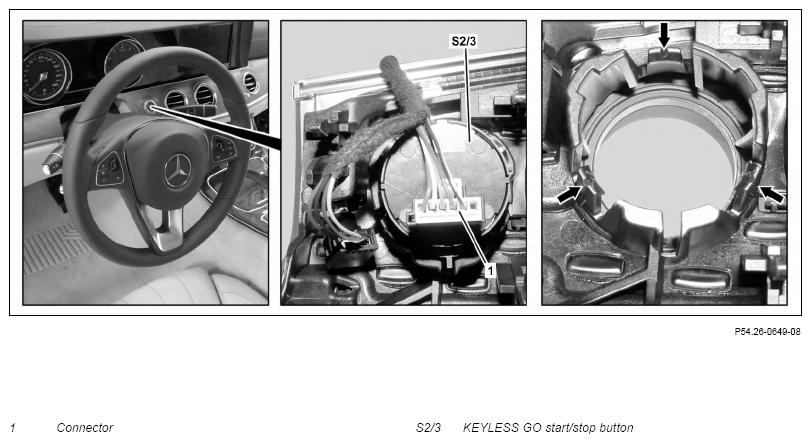

| 3 | Unclip KEYLESS GO start-stop button (S2/3) from catch hooks (arrows) and remove to rear | ||
| 4 | Install in the reverse order |
