Remove/Install Pyrofuse - AR54.10-P-1180LHV
Model 213 (except 213.016/050/053/054/153/155/216/253)
with code B01 (48V technology)
Model 213.016/050/053/054/153/155/216/253
Shown on model 213.050 1#
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove paneling below instrument panel on passenger side | AR68.10-P-1502LWE | |
| 2 | Detach ground line of on-board electrical system battery | AR54.10-P-0003LW | |
| 3 | Remove bolts (3) | ||

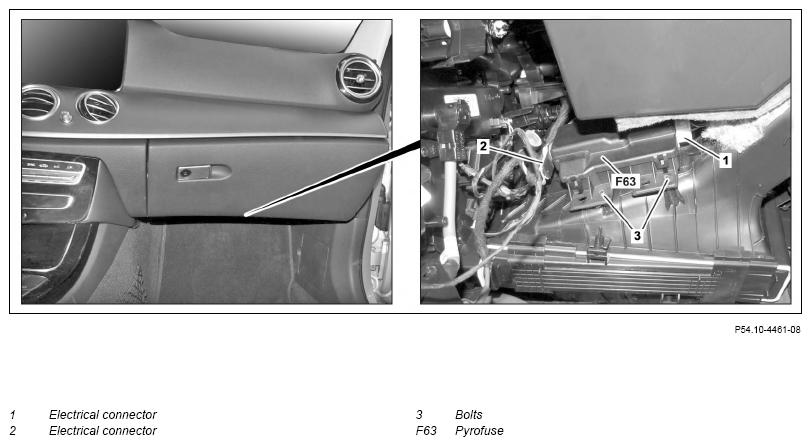

| 4 | Pull pyrofuse (F63) in downward direction until electrical connections (1, 2) are accessible | ||
| 5 | Disconnect electrical connection (1) | ||
| 6 | Release and disconnect electrical connector (2) | ||
| 7 | Remove pyrofuse (F63) | ||
| 8 | Install in the reverse order | ||
| 9 | Connect diagnostic system and erase all fault memories | ||
