Remove/Install Fuse And Relay Module In Engine Compartment - AR54.15-P-0005LW
Model 205, 213, 238, 253, 293

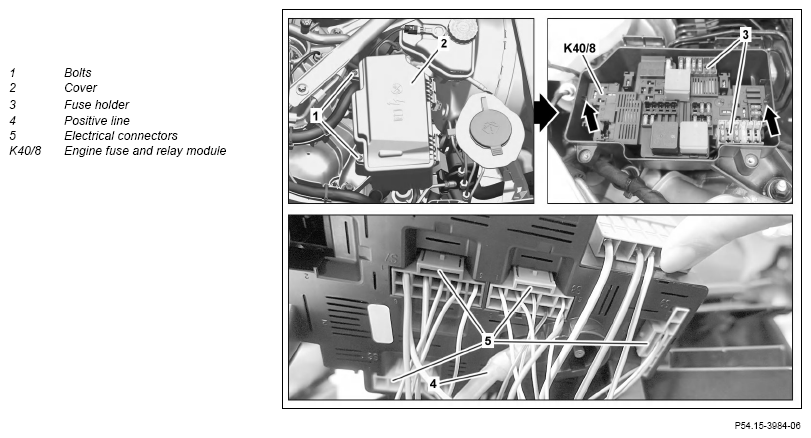

Shown on MODEL 205.### 1#
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery. | Model 293 | AR54.10-P-0003EQ |
| Model 238 | AR54.10-P-0003LWO | ||
| Model 205 Model 213 |
AR54.10-P-0003LW | ||
| 2 | Remove cover over brake fluid reservoir. | ||
| 3 | Remove screws (1) and take off cap (2). | ||
| 4 | Unlock engine fuse and relay module (K40/8) (arrows) and remove from housing. | ||
| 5 | Unclip fuse holders (3) from engine fuse and relay module (K40/8). | ||
| 6 | Remove positive line (4) from engine fuse and relay module (K40/8). | *BA54.15-P-1007-01K | |
| 7 | Disconnect electrical connectors (5) from engine fuse and relay module (K40/8). | ||
| 8 | Remove engine fuse and relay module (K40/8). | ||
| 9 | Install in the reverse order. |
FUSE AND RELAY BOX
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BA54.15-P-1007-01K | Nut, positive line to engine fuse and relay module | M6 | Nm | 8 | 8 |
FUSE AND RELAY BOX
| Number | Designation | Model 238 | Model 253 | ||
|---|---|---|---|---|---|
| BA54.15-P-1007-01K | Nut, positive line to engine fuse and relay module | M6 | Nm | 8 | 8 |
FUSE AND RELAY BOX
| Number | Designation | Model 293 | ||
|---|---|---|---|---|
| BA54.15-P-1007-01K | Nut, positive line to engine fuse and relay module | M6 | Nm | 8 |
