Remove/Install Fanfare Horns - AR54.35-P-1555LWE
Model 213 (except 213.088/089/288/289)
Model 238

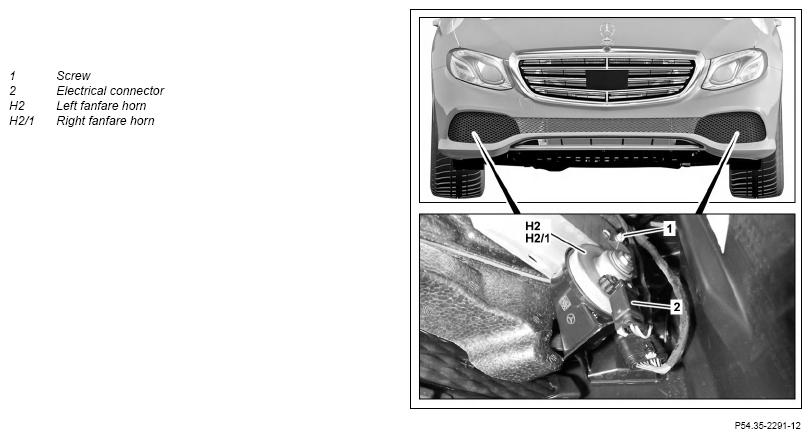

Shown on model 213
| Remove/install | |||
| 1 | Remove left or right front engine compartment lining | AR61.20-P-1105LWE | |
| 2 | Remove fender liner front section at right | Model 213 (except 213.088/089/288/289) with code 489 (AIR BODY CONTROL) Model 238 When removing right fanfare horn (H2/1). |
AR88.10-P-1300LWE |
| 3 | Detach electrical connection (2) from left horn (H2) or right horn (H2/1) | ||
| 4 | Remove bolt (1) at left or right and take off left horn (H2) or right horn (H2/1) | ||
| 5 | Install in the reverse order |
