Remove/Install Electronic Ignition Lock Control Unit - AR54.21-P-0038LWE
Model 213
Model 238

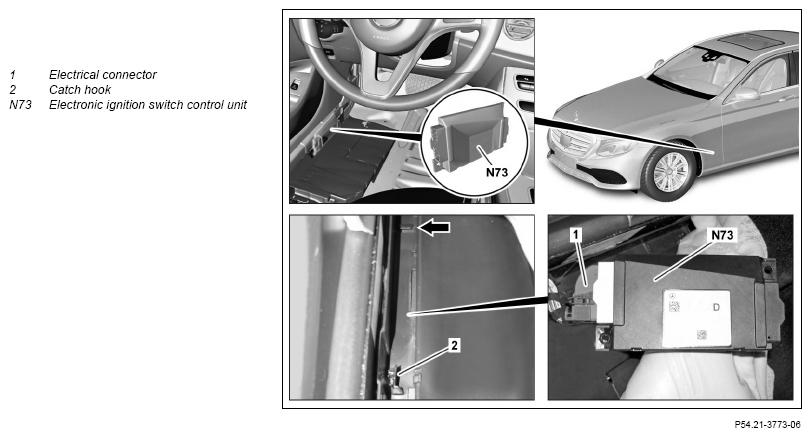

Shown on model 213.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission the electronic ignition lock control unit (N73) | When replacing the electronic ignition lock control unit (N73). | |
| Model 213 | AD00.00-P-2000-04B | ||
| Model 238 | AD00.00-P-2000-06LWO | ||
| 2 | Move driver seat towards the rear | ||
| 3 | Disconnect battery ground line | Model 213 | AR54.10-P-0003LW |
| Model 238 | AR54.10-P-0003LWO | ||
| 4 | Remove door sill for driver footwell | Model 213 | AR68.30-P-4100LW |
| Model 238 | AR68.30-P-4100CLW | ||
| 5 | Fold back floor covering in driver footwell | ||
| 6 | Release catch hook (2), move electronic ignition lock control unit (N73) far enough out of guide so that the electrical connection (1) can be detached | ||
| 7 | Detach electrical connection (1) and remove electronic ignition lock control unit (N73) | ||
| 8 | Install in the reverse order |
