Remove/Install Battery Sensor - AR54.10-P-0002LWH

Model 205.012/047/147/212/247

Model 213 with code B01 (48V technology)

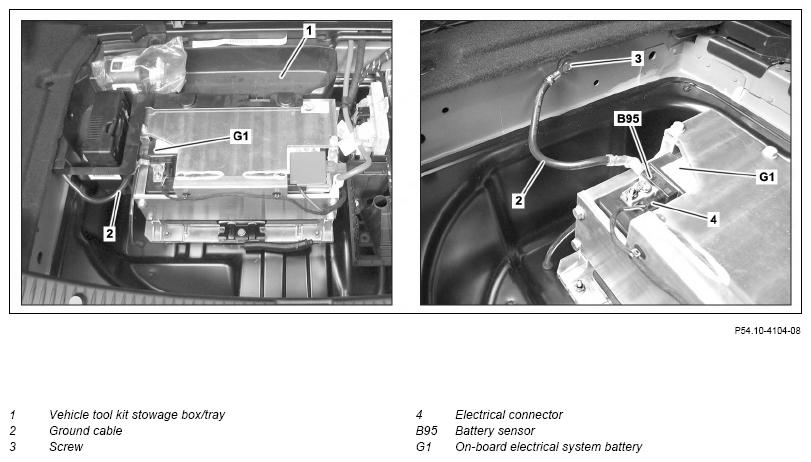

Fig 1: Battery Sensor Component Location - Model 213 With Code B01 (Shown On Model 205.012)

Courtesy of MERCEDES-BENZ USA

Shown on model 205.012

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of fire/risk  of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system		AH00.00-Z-0300-01A
	Notes on battery		AH54.10-P-0001-01A
	Remove/install
1	Disconnect ground line (2) from on-board electrical system battery (G1).		AR54.10-P-0003LW
2	Remove vehicle tool kit stowage box/tray (1).	Model 205.012/212
3	Release and disconnect electrical connector (4).
4	Remove screw (3).	Model 213 with code B01 (48V technology) Battery ground point	*BA00.19-P-1035-02A
		Model 205.012/047/147/212/247 as of model year 2019 Model 205.012/047/147/212/247 up to model year 2019 Battery ground point	*BA00.19-P-1010-01E
5	Remove ground line (2) with battery sensor (B95).	The ground line (2) and battery sensor (B95) are one component and cannot be replaced individually.
6	Install in the reverse order
