Remove/Install Backup Camera - AR54.65-P-0030LWT

Model 213.2 with code 218 (Rear view camera)

Model 213.2 with code 501 (360° camera)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS	Model 213.2 with code 218 (Rear view camera) with code P17 (KEYLESS-GO package) Model 213.2 with code 501 (360° camera) with code P17 (KEYLESS-GO package)	AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Remove center liftgate trim.		AR72.20-P-6618LWS

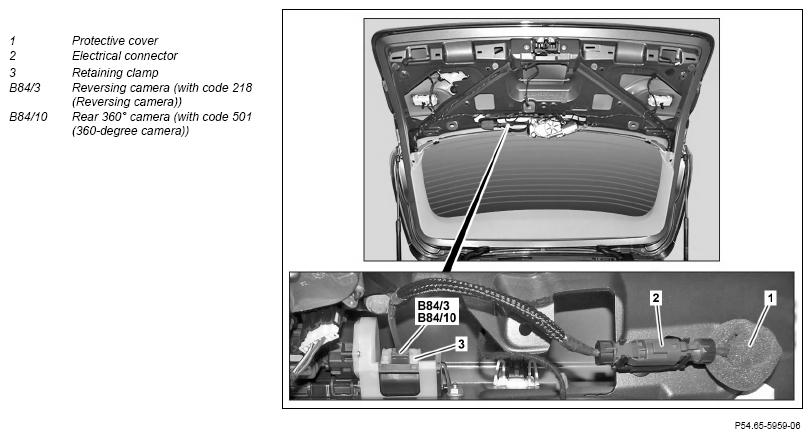

3	Push back protective sleeve (1) then release and disconnect electrical connection (2).	Model 213.2 with code 501 (360° camera) The rear 360° camera (B84/10) has two electrical connectors (2).
4	Release and fold up retaining clamp (3).
5	Pull reversing camera (B84/3) or camera for rear 360° camera (B84/10).
6	Install in the reverse order.
	Initial startup
7	Commission reversing camera (B84/3) using vehicle diagnosis system.	Model 213.2 with code 218 (Rear view camera) except code 235 (Active Parking Assist) When replacing reversing camera (B84/3).
			AD00.00-P-2000-04B
	Calibrate
8.1	Calibrate rear 360° camera (B84/10) or reversing camera (B84/3) using diagnostic system.	Model 213.2 with code 218 (Rear view camera) with code 235 (Active Parking Assist) Model 213.2 with code 501 (360° camera)
			AD00.00-P-2000-04B
8.2	Calibrate reversing camera (B84/3) with vehicle diagnosis system.	Model 213.2 with code 218 (Rear view camera) except code 235 (Active Parking Assist)
			AD00.00-P-2000-04B
		Calibration device	Fig 1

Fig 1: Identifying Calibration Device (000 589 01 21 00)

Courtesy of MERCEDES-BENZ USA
