Check Heads-Up Display - AR54.30-P-6401-02LWO

Model 213, 238 with code 463 (Head-up display)

Shown on model 213 up to model year 2021

Courtesy of MERCEDES-BENZ USA

Set picture to center position

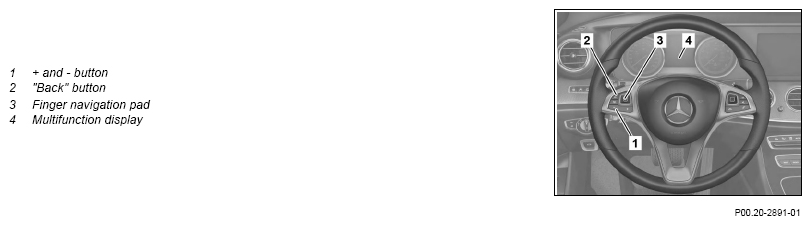

1. Press "Back" button (2) repeatedly until menu selection is shown on the multifunction display (4).
2. Using wiper blade sweeps on finger navigation pad (3), select menu item "HUD" and press on finger navigation pad (3).
3. Using wiper blade sweeps on finger navigation pad (3), select menu item "Position" and press on finger navigation pad (3).
4. Using wiper blade sweeps on finger navigation pad (3), select stage "0" and press on finger navigation pad (3).

   Call up Workshop menu and Test image 1

5. Press "Back" button (2) repeatedly until menu selection is shown on the multifunction display (4).
6. Using wiper blade sweeps on finger navigation pad (3), select menu item "Trip" and press on finger navigation pad (3).
7. Using wiper blade sweeps on finger navigation pad (3), select standard display "Total distance".
8. 8.1 Model 213, 238 up to model year 2021 with code 463 (Head-up display) Press and hold the "Back" button (2) and press on finger navigation pad (3) after approx. 1.5 s.

   The workshop menu with the menu item is shown on the multifunction display (4): "Head-up Display".

   8.2 Model 213, 238 as of model year 2021 with code 463 (Head-up display) Press and hold "Home" button for at least 5 s, then press and hold down finger navigation pad (3) for at least 3 s. Then press "Home" button and navigate to the left using arrow buttons on finger navigation pad (3).

   The workshop menu with the menu item is shown on the multifunction display (4): "Head-up Display".

9. Using wiper blade sweeps on finger navigation pad (3), select menu item "Head-up display" and press on finger navigation pad (3).
10. Using wiper blade sweeps on finger navigation pad (3), select menu item "Test picture" and press on finger navigation pad (3).

    Off (original picture)" appears on the multifunction display (4).

11. Press on finger navigation pad (3) to make changes.
12. Using wiper blade sweeps on finger navigation pad (3), select "Test picture 1" and press on finger navigation pad (3).

    Test image 1 is shown on the windshield.

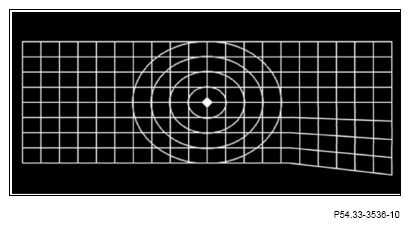

13. Check and assess test image 1.

    Assessment should be performed by at least 2 persons. The setting is OK if test image 1 is displayed as shown.

    If test image 1 is shown correctly,

    ↓

    press on finger navigation pad (3), use wiper blade sweeps on finger navigation pad (3) to select "Off (original picture)", press on finger navigation pad (3) again, press "Back" button (2) repeatedly until the menu selection appears on the multifunction display (4) and switch off ignition.

    The workshop menu can only be completed by switching off the ignition.

    If test image 1 is not shown correctly,

    ↓

    continue with operation step 14.

14. Press on finger navigation pad (3) to make changes.
15. Using wiper blade sweeps on finger navigation pad (3) select "Test picture 7" and press on finger navigation pad (3).

    Courtesy of MERCEDES-BENZ USA

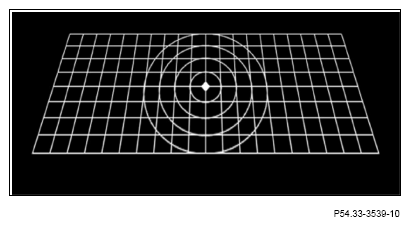

16. Check and assess test image 7.

    Assessment should be performed by at least 2 persons.

    The setting is OK if test image 7 is displayed as shown.

    If test image 7 is shown correctly,

    ↓

    press on finger navigation pad (3), use wiper blade sweeps on finger navigation pad (3) to select "Off (original picture)", press on finger navigation pad (3) again, press "Back" button (2) repeatedly until the menu selection appears on the multifunction display (4) and switch off ignition.

    Courtesy of MERCEDES-BENZ USA

    The workshop menu can only be completed by switching off the ignition.

    Courtesy of MERCEDES-BENZ USA

    If test image 7 is not shown correctly

    ↓

    continue with operation step 17.

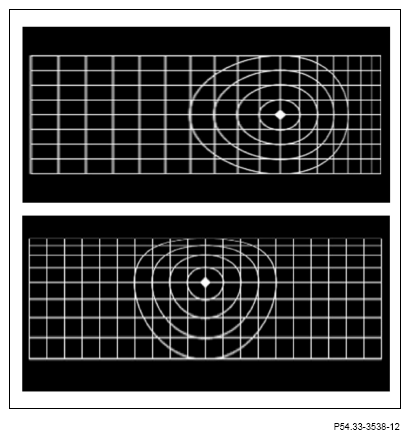

    If test image 7 was not shown correctly, the parameters in the workshop menu must be reset.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Reset parameters in workshop menu

17. Press "Back" button (2).
18. Using wiper blade sweeps on finger navigation pad (3), select menu item "Parameters" and press on finger navigation pad (3).
19. Using wiper blade sweeps on finger navigation pad (3), select menu item "Warp configuration" and press on finger navigation pad (3).

    Parameters are reset.

20. Call up and assess test image 1 and test image 7 again.

    If test image 1 and test image 7 are shown correctly,

    press on finger navigation pad (3), use wiper blade sweeps on finger navigation pad (3) to select "Off (original picture)", press on finger navigation pad (3) again, press "Back" button (2) repeatedly until the menu selection appears on the multifunction display (4) and switch off ignition.

    The workshop menu can only be completed by switching off the ignition.

    If test image 1 or test image 7 are not shown correctly,

    ↓

    select the individual parameters under menu item "Parameters" and correct them accordingly using the + and - button (1) or the finger navigation pad (3).
