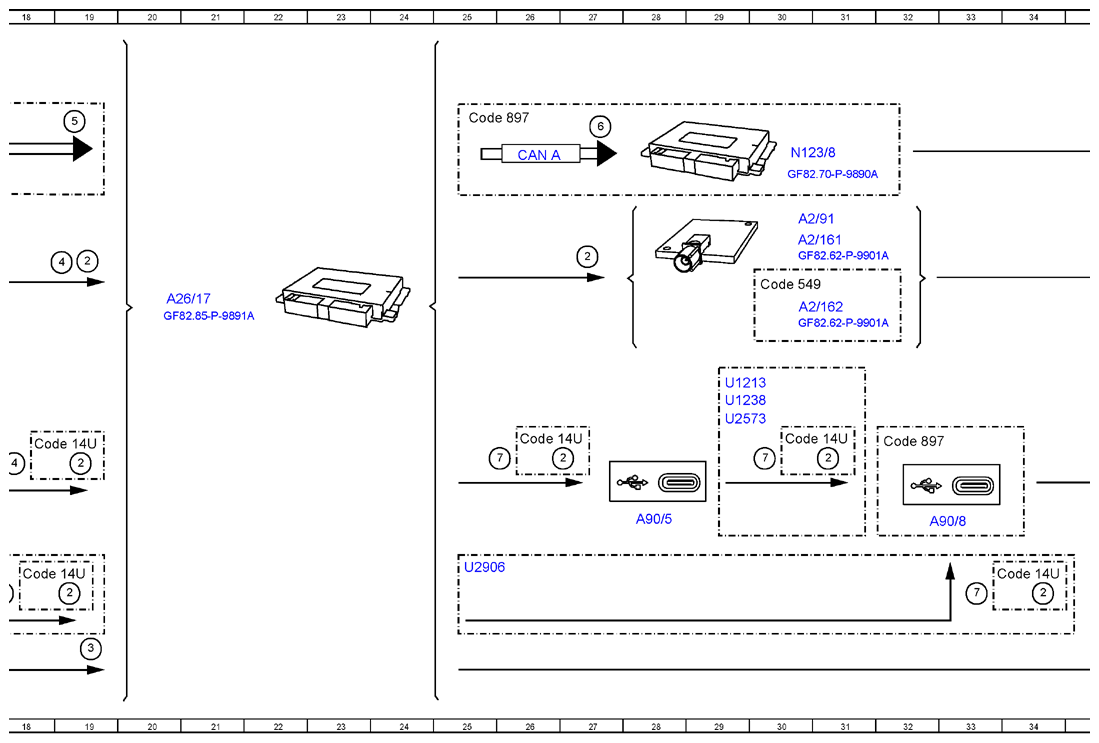

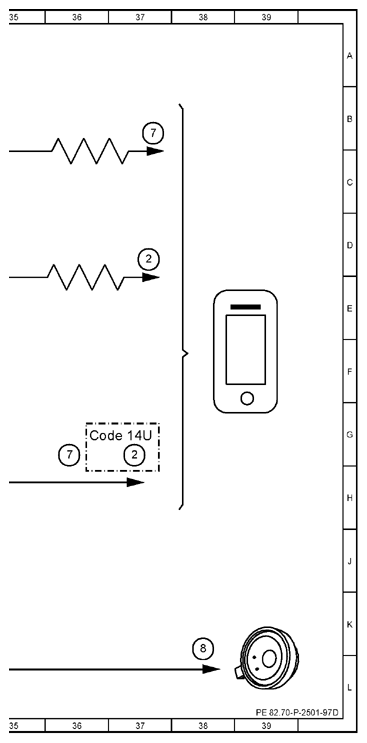

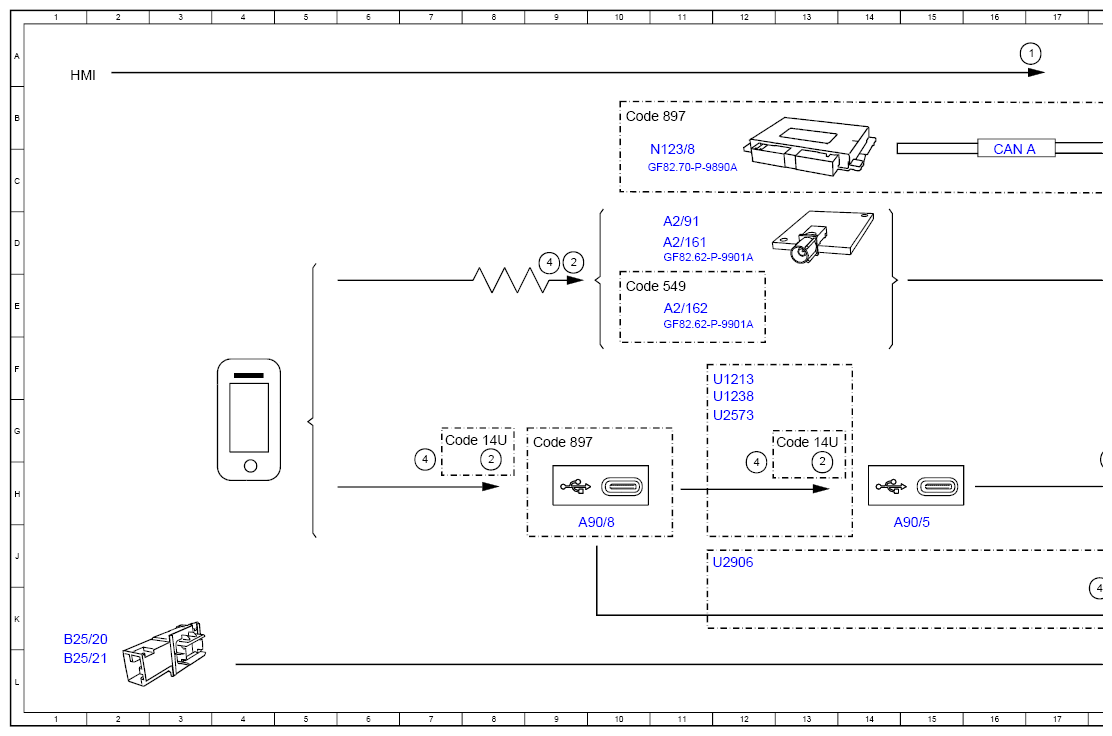

Function Schematic For Telephony - PE82.70-P-2501-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 17A |
| 2 | Telephone, signal | 9E |
| 2 | Telephone, signal | 19D |
| 2 | Telephone, signal | 8H |
| 2 | Telephone, signal | 27H |
| 2 | Telephone, signal | 17D |
| 2 | Telephone, signal | 37G |
| 2 | Telephone, signal | 37D |
| 2 | Telephone, signal | 13G |
| 2 | Telephone, signal | 19G |
| 2 | Telephone, signal | 31G |
| 2 | Telephone, signal | 19K |
| 2 | Telephone, signal | 34K |
| 3 | Audio, signal | 19L |
| 4 | Address data, signal | 9D |
| 4 | Address data, signal | 7H |
| 4 | Address data, signal | 19D |
| 4 | Address data, signal | 12H |
| 4 | Address data, signal | 18H |
| 4 | Address data, signal | 18K |
| 5 | Charge level, status | 19C |
| 6 | Charging voltage and charging current, request | 27C |
| 7 | Charging current, energy flow | 25H |
| 7 | Charging current, energy flow | 36H |
| 7 | Charging current, energy flow | 37B |
| 7 | Charging current, energy flow | 30H |
| 7 | Charging current, energy flow | 33K |
| 8 | Audio, signal | 38L |
| A2/161 | WiFi antenna 1 | 11D |
| A2/161 | WiFi antenna 1 | 30D |
| A2/162 | Wi-Fi antenna 2 | 11E |
| A2/162 | Wi-Fi antenna 2 | 30E |
| A2/91 | Bluetooth® antenna | 11D |
| A2/91 | Bluetooth® antenna | 30D |
| A26/17 | Head unit | 20E |
| A90/5 | Multimedia connection unit | 28H |
| A90/5 | Multimedia connection unit | 14J |
| A90/8 | Front multimedia connection unit 2 | 9J |
| A90/8 | Front multimedia connection unit 2 | 32H |
| B25/20 | Driver hands-free system microphone | 1K |
| B25/21 | Front passenger hands-free system microphone | 1L |
| CAN A | Telematics CAN | 16C |
| CAN A | Telematics CAN | 26C |
| Code 14U | Smartphone Integration Package | 7G |
| Code 14U | Smartphone Integration Package | 26G |
| Code 14U | Smartphone Integration Package | 36G |
| Code 14U | Smartphone Integration Package | 13G |
| Code 14U | Smartphone Integration Package | 18G |
| Code 14U | Smartphone Integration Package | 30G |
| Code 14U | Smartphone Integration Package | 18J |
| Code 14U | Smartphone Integration Package | 33J |
| Code 549 | Connect 20 HIGH (NTG6) | 10E |
| Code 549 | Connect 20 HIGH (NTG6) | 30E |
| Code 897 | Wireless mobile phone charging | 10B |
| Code 897 | Wireless mobile phone charging | 25B |
| Code 897 | Wireless mobile phone charging | 9G |
| Code 897 | Wireless mobile phone charging | 32G |
| N123/8 | Front mobile phone cradle control unit | 11C |
| N123/8 | Front mobile phone cradle control unit | 30C |
| U1213 | Valid for model 213 | 12F |
| U1213 | Valid for model 213 | 29F |
| U1238 | Valid for model 238 | 12G |
| U1238 | Valid for model 238 | 29G |
| U2573 | Valid for model 257.3 | 12G |
| U2573 | Valid for model 257.3 | 29G |
| U2906 | Valid for model 290.6 | 11J |
| U2906 | Valid for model 290.6 | 25J |
