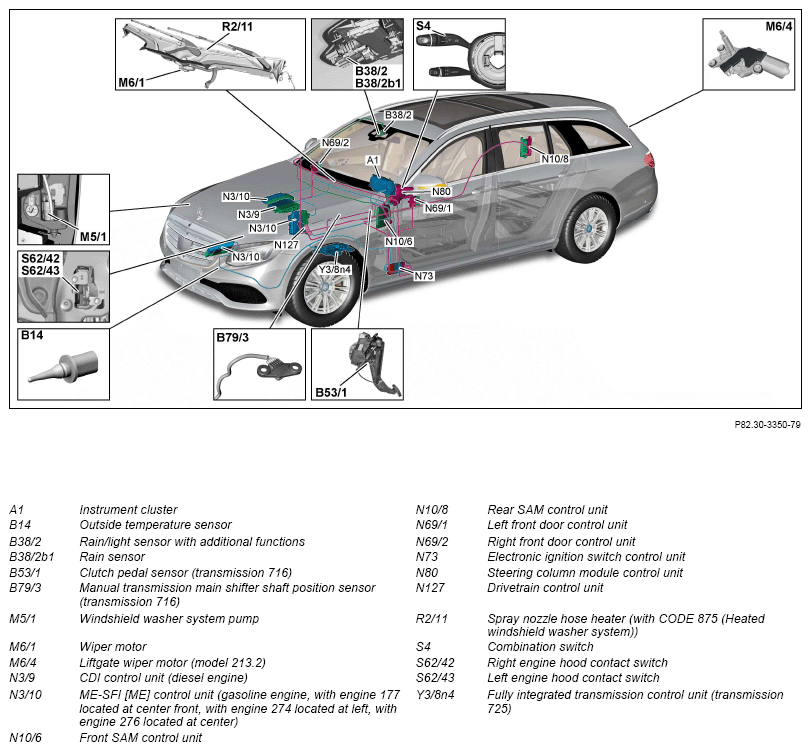

Overview Of System Components For Windshield Wiper System - GF82.30-P-9996FG
Model 213
up to model year 2021
Show on model 213 2
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Component description for CDI control unit | Model 213 with engine 642.8 up to model year 2021 N3/9 | GF07.16-P-6000OGW | |
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 N3/9 |
GF07.16-P-6000ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORE | ||
| Model 213 with engine 656.9 up to model year 2021 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 213 with engine 177.9 up to model year 2021 N3/10 | GF07.61-P-6000MNA | |
| Model 213 (except 213.050/053/153) with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRD | ||
| Model 213.050/053 with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRP | ||
| Model 213 with engine 276.8 up to model year 2021 N3/10 | GF07.61-P-6000MND | ||
| Model 213 with engine 264.9 up to model year 2021 N3/10 | GF07.61-P-6000MRG | ||
| Model 213 with engine 256.9 up to model year 2021 N3/10 | GF07.61-P-6000MRT | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FG | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FG | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Component description for steering column tube module control unit | Model 213 up to model year 2019 N80 | GF54.21-P-6051FG | |
| Model 213 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FGA | ||
| Drivetrain control unit, component description | Model 213 with engine 177.9 up to model year 2021 N127 | GF54.21-P-2141MNA | |
| Model 213 with engine 264.9, 274.9, 276.8 up to model year 2021 N127 | GF54.21-P-2141MRP | ||
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 Model 213 with engine 642.8 up to model year 2021 N127 |
GF54.21-P-2141ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N127 | GF54.21-P-2141ORE | ||
| Model 213 with engine 256.9 up to model year 2021 N127 | GF54.21-P-2141LF | ||
| Model 213 with engine 656.9 up to model year 2021 N127 | GF54.21-P-2141OGS | ||
| Component description for fully integrated transmission control unit | Model 213 with transmission 725.0 (except 725.007/017/096) up to model year 2021 Y38n4 |
GF27.60-P-5165ANL | |
| Model 213 with transmission 725.007/017 up to model year 2021 Y38n4 | GF27.60-P-5165AHU | ||
| Model 213 with transmission 725.096 up to model year 2021 Y38n4 | GF27.60-P-5165ANO | ||
| Table of contents for function description of windshield wiper system | GF82.30-P-0997FG |
