Seam Sealing Following Repair, Side Damage - Ar97.10-P-4000-03LW
Model 205, 213, 253, 293
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
When sealing seams we differentiate between:
- smoothing/wiping (A)
- sealing/spreading (B)

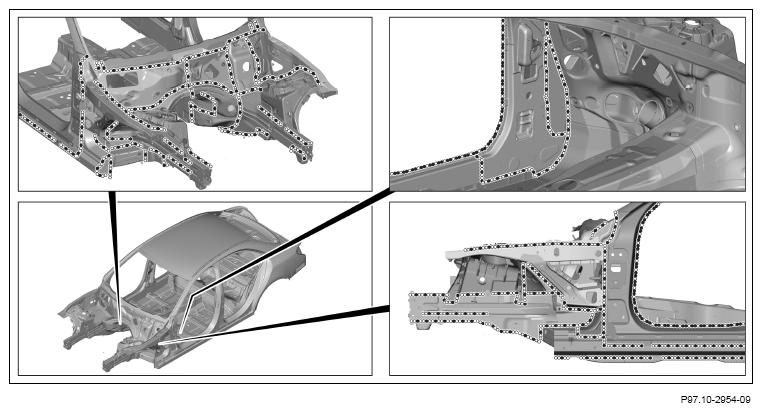

Area of front end and A-pillar, shown on model 205.0

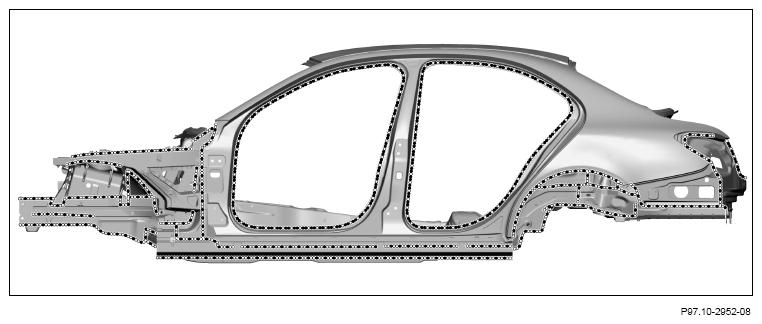

Area of B-pillar, rear fender and longitudinal member, shown on MODEL 205.0

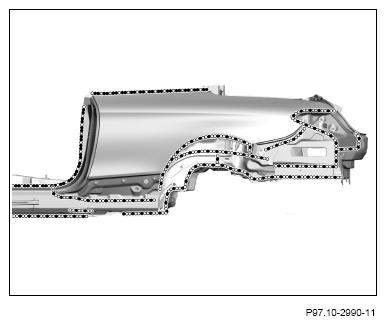

Area of rear fender, shown on model 205.2

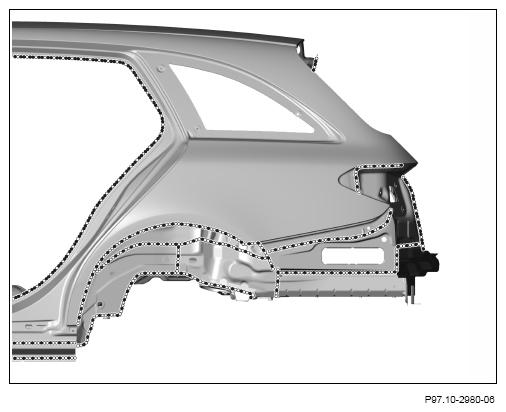

Area of rear fender, model 205.4

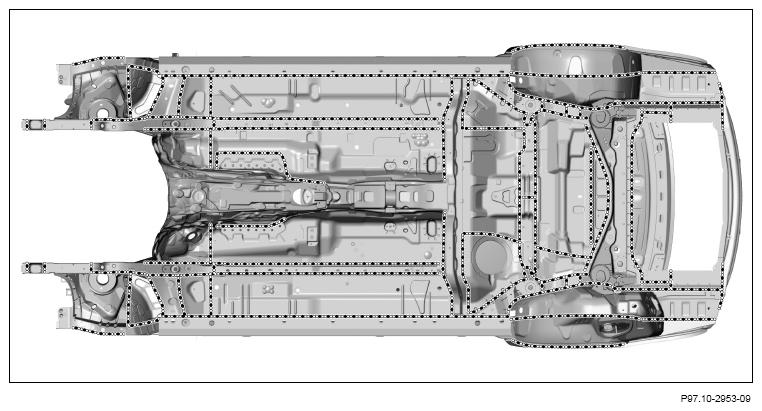

Area of underfloor and wheel well, shown on model 205.0
- Seal connecting flange, spot welds and riveted joints of repaired area with seam sealing material.
- Insert plastic plug and rubber grommets with seam sealant material.
Observe standard sealing.
Seal only primed body parts.
Ensure that the threads on the weld nuts and threaded bolts as well as the drain openings in the contact surfaces for the axle attachments, pulleys or detachable parts are kept free of seam sealing material. It is necessary to seal accessible spot weld flanges on both sides.
