Prepare Rear Roof Frame For Installation - AR65.20-P-1008-02LWE

Model 213.0/1

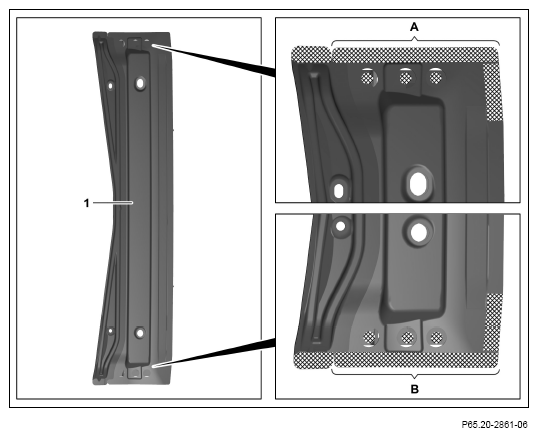

1. Grind mating surfaces on roof frame (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.
3. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (areas A and B).

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surfaces.

4. Prepare bonding surfaces on roof frame (1) in crosshatched areas (areas A and B).

   Observe processing specifications of adhesive.
