Brake System - Inspect Fluid Level - AP42.10-P-4210B

Model 213, 238, 253, 257, 290

Show on model 253.3

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Preparatory activity

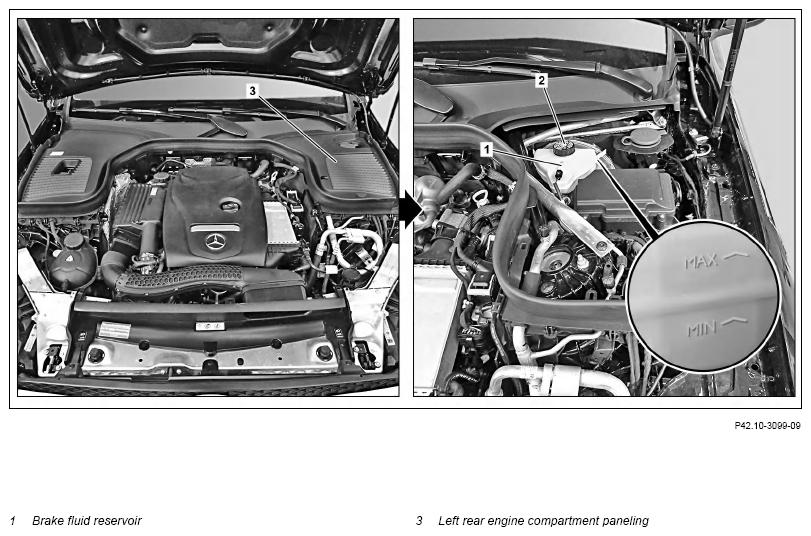

1	Remove left rear engine compartment trim (3).
	Check
2	Check fluid level in brake fluid reservoir (1).
	General brake fluid		BB00.40-P-0330-01A
	Brake fluids (DOT 4 plus)	The fluid level must be between the max. and min. marks on the brake fluid reservoir (1). If the fluid level is too low, ↓ rectify problem. After obtaining special order. If the fluid level is too high, ↓ extract brake fluid up to max. mark.	BB00.40-P-0331-00A
	Finishing activity
3	Install left rear engine compartment trim (3).
