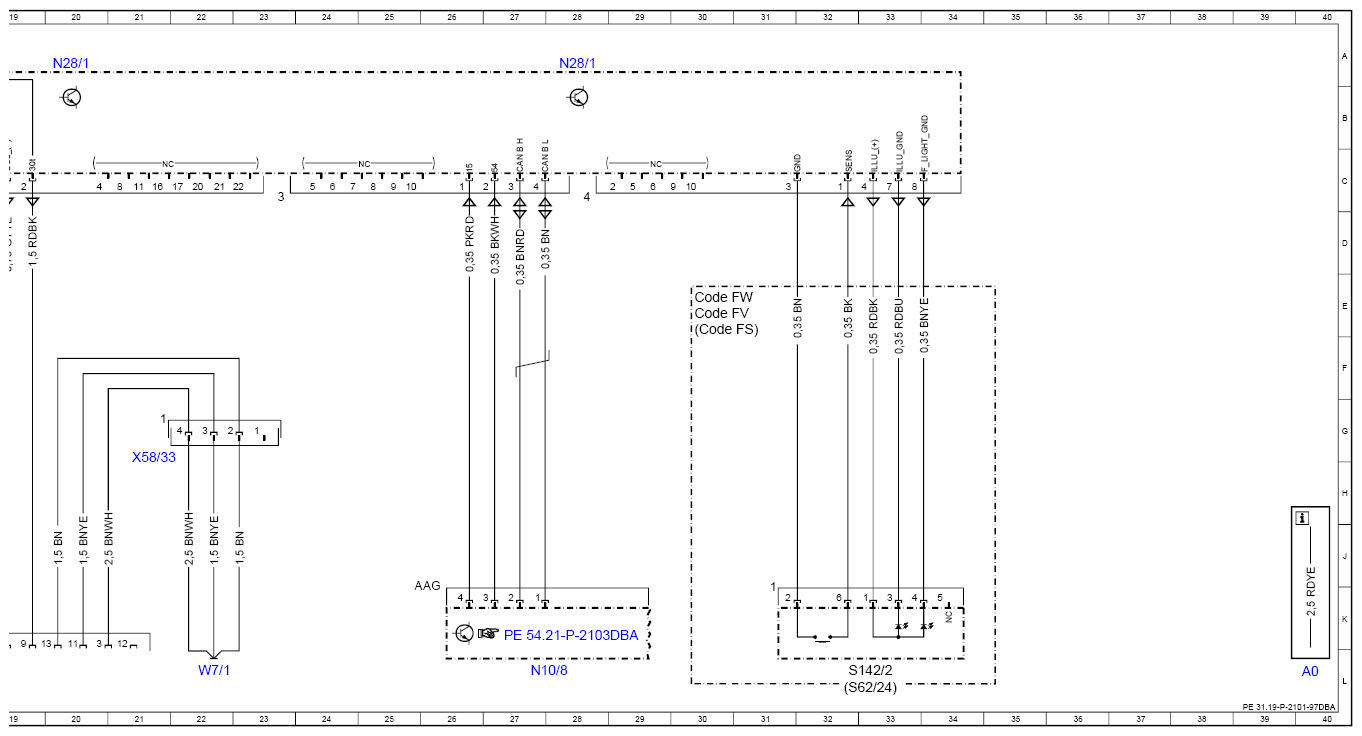

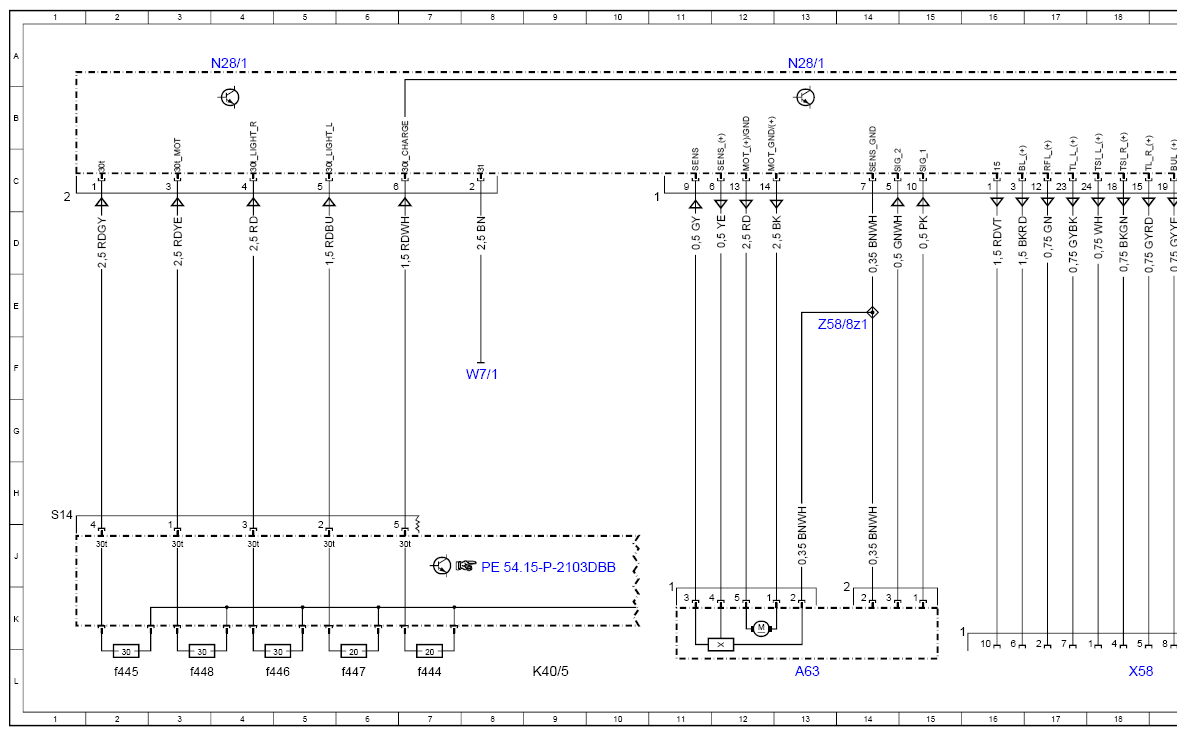

Trailer Recognition Control Unit Wiring Diagram - PE31.19-P-2101-97DBA
Model 213 up to model year 2021 with code 550 (Trailer coupling) Control unit N28/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A63 | Trailer hitch release | 13L |
| Code FS | STATION WAGON | 30E |
| Code FV | LONG SEDAN | 30E |
| Code FW | SEDAN | 30E |
| K40/5 | Rear fuse and relay module | 9L |
| K40/5f444 | Fuse 444 | 7L |
| K40/5f445 | Fuse 445 | 2L |
| K40/5f446 | Fuse 446 | 4L |
| K40/5f447 | Fuse 447 | 6L |
| K40/5f448 | Fuse 448 | 3L |
| N10/8 | Rear SAM control unit | 27L |
| N28/1 | Trailer recognition control unit | 13A |
| N28/1 | Trailer recognition control unit | 4A |
| N28/1 | Trailer recognition control unit | 28A |
| N28/1 | Trailer recognition control unit | 20A |
| S142/2 | Trunk lid/liftgate fully electric trailer hitch switch | 33L |
| S62/24 | Trailer hitch release switch | 32L |
| W7/1 | Right taillamp trunk ground point | 8F |
| W7/1 | Right taillamp trunk ground point | 22L |
| X58 | Trai1er socket | 18L |
| X58/33 | Vehicle interior/trailer hitch electrical connector | 21H |
| Z58/8z1 | Trailer hitch circuit 31 connector sleeve | 14E |
