Remove/Install Pop-Up Bracket On Tilting/Sliding Roof - AR77.20-P-1700LW

Model 205.0/1

with code 414 (Sliding sunroof)

Model 213.0/1/2

with code 414 (Sliding sunroof)

Model 253

with code 414 (Sliding sunroof)

Model 293

with code 414 (Sliding sunroof)

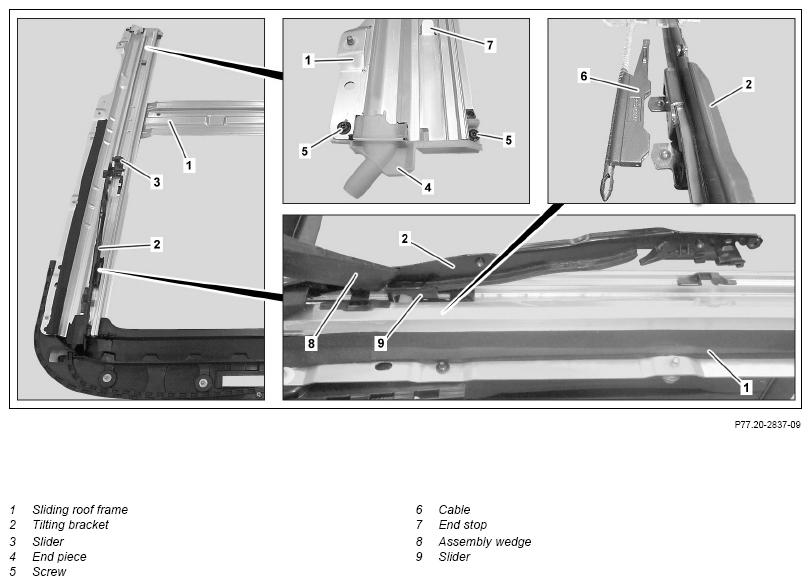

Shown on right side of sliding roof frame (1)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove sliding roof frame (1)		AR77.20-P-3000LW
2	Unscrew bolts (5) on left and right side of panoramic sliding roof frame (1)
3	Remove end piece (4) on left and right side of sliding roof frame (1)	Replace end pieces (4). Otherwise leakage can occur on sliding roof frame (1).
4	Bend end stop (7) downward	Carefully bend end stop (7) downward. Otherwise end stop (7) can break.
5	Remove sliders (3) from sliding roof frame (1)	Move sliders (3) up to end stop on tilting bracket (2).
6	Remove sliders (9) from sliding roof frame (1) with assembly wedge (8)	Remove sliders (9), tilting brackets (2) and cable (6) together. Move sliders (9) to end stop on sliding roof frame (1). Mounting wedge	Fig 1
7	Unclip cable (6) from tilting brackets (2) and remove
8	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
